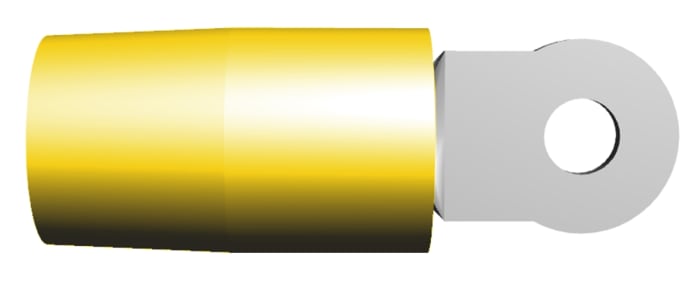

TE Connectivity, TERMINYL Insulated Ring Terminal, M4 (#8) Stud Size, 16.8mm² to 26.7mm² Wire Size, Yellow
300 in stock in the UK
$ 2.407
Each (In a Box of 100)
Live stock
300 in stock in the UK
Product details
TE Connectivity TERMINYL Crimp Ring Terminals
TERMINYL crimp ring terminals designed for use with larger wire sizes from 8 AWG to 4/0 AWG. These TERMINYL ring terminals are made from high grade conductivity copper per ASTM B-152 and tin plated per ATSM B-545 and are designed to withstand extreme vibration, shock and high temperatures. the funnel entry, colour-coded moulded nylon insulation of these TERMINYL wire connectors enables wires to be inserted easily and acts as an insulation support.
TE Connectivity Terminyl Range
Specifications
Brand
TE Connectivity
Series
TERMINYL
Insulation
Insulated
Insulation Material
Nylon
Inner Ring Diameter
4.43mm
Outer Ring Diameter
11.1mm
Minimum Wire Size mm²
16.8mm²
Maximum Wire Size mm²
26.7mm²
Minimum Wire Size AWG
4AWG
Maximum Wire Size AWG
4AWG
Stud Size
M4 (#8)
Colour
Yellow
Contact Plating
Tin
Contact Material
Copper
Thickness
1.22mm
Overall Length
34.95mm
