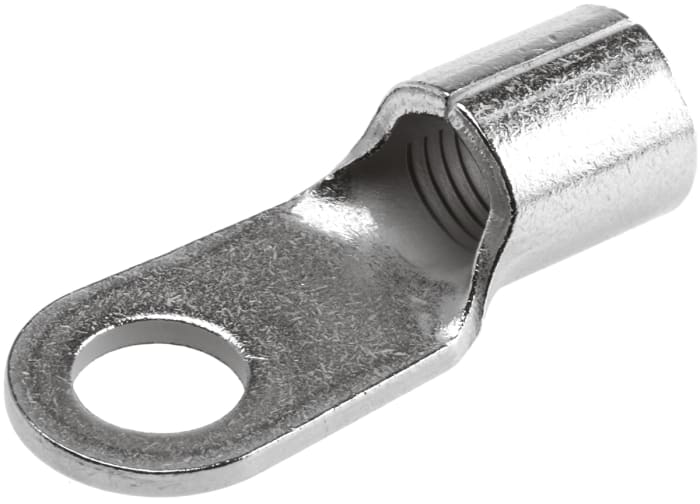

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M6 (1/4) Stud Size, 10.5mm² to 16.8mm² Wire Size
Temporarily out of stock
$ 2,597.84
1 Box of 2000
Live stock
Temporarily out of stock
Product details
TE Connectivity SOLISTRAND STRATO-THERM Heat Resistant Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM heat resistant ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM heat resistant ring tongue crimp terminals are made from nickel plated electrolytic copper and are designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM heat resistant ring tongue crimp terminals is 343°C (650°F)
TE Connectivity STRATO-THERM Terminals and Splices
Specifications
Brand
TE Connectivity
Series
STRATO-THERM
Insulation
Uninsulated
Inner Ring Diameter
6.73mm
Outer Ring Diameter
11.89mm
Minimum Wire Size mm²
10.5mm²
Maximum Wire Size mm²
16.8mm²
Minimum Wire Size AWG
6AWG
Maximum Wire Size AWG
6AWG
Stud Size
M6 (1/4)
Contact Plating
Nickel
Contact Material
Copper
Thickness
1.45mm
Overall Length
29.67mm
