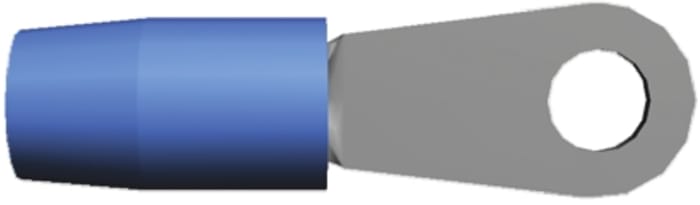

TE Connectivity, TERMINYL Insulated Ring Terminal, M6 (1/4) Stud Size, 10.5mm² to 16.8mm² Wire Size, Blue
40 in stock in the UK
$ 3,989.97
1 Pack of 2000
Live stock
40 in stock in the UK
Product details
TE Connectivity TERMINYL Crimp Ring Terminals
TERMINYL crimp ring terminals designed for use with larger wire sizes from 8 AWG to 4/0 AWG. These TERMINYL ring terminals are made from high grade conductivity copper per ASTM B-152 and tin plated per ATSM B-545 and are designed to withstand extreme vibration, shock and high temperatures. the funnel entry, colour-coded moulded nylon insulation of these TERMINYL wire connectors enables wires to be inserted easily and acts as an insulation support.
TE Connectivity Terminyl Range
Specifications
Brand
TE Connectivity
Series
TERMINYL
Insulation
Insulated
Insulation Material
Nylon
Inner Ring Diameter
6.73mm
Outer Ring Diameter
12.7mm
Minimum Wire Size mm²
10.5mm²
Maximum Wire Size mm²
16.8mm²
Minimum Wire Size AWG
6AWG
Maximum Wire Size AWG
6AWG
Stud Size
M6 (1/4)
Colour
Blue
Contact Plating
Tin
Contact Material
Copper
Thickness
1.14mm
Overall Length
43.18mm
