TE Connectivity, PIDG, STRATO-THERM Insulated Ring Terminal, M6 Stud Size, 2.6mm² to 6.6mm² Wire Size, Black
Temporarily out of stock
$ 7.671
Each (In a Box of 500)
Live stock
Temporarily out of stock
Product details

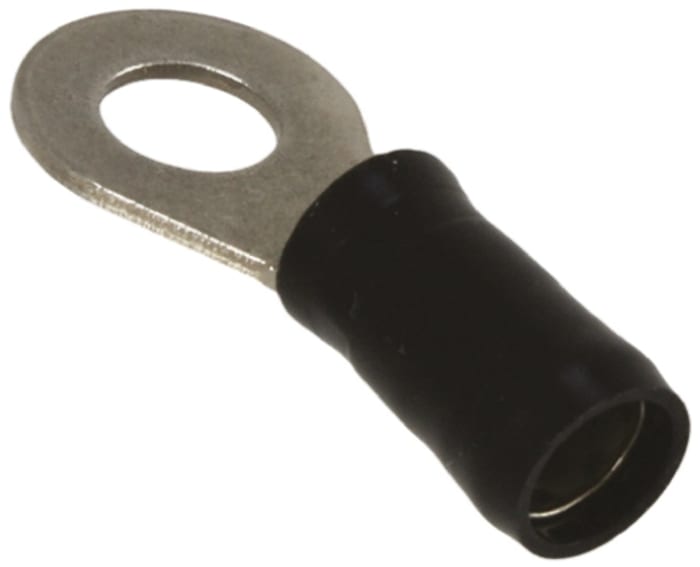

TE Connectivity PIDG STRATO-THERM Ring Tongue Wire Crimp Terminals
PIDG STRATO-THERM high temperature ring tongue wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a PTFE colour coded insulation sleeve. These PIDG STRATO-THERM ring tongue wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
TE Connectivity PIDG Terminals
Specifications
Brand
TE Connectivity
Series
PIDG, STRATO-THERM
Insulation
Insulated
Insulation Material
PTFE
Minimum Wire Size mm²
2.6mm²
Maximum Wire Size mm²
6.6mm²
Minimum Wire Size AWG
12AWG
Maximum Wire Size AWG
10AWG
Stud Size
M6
Colour
Black
Contact Material
Copper
Contact Plating
Nickel
Overall Length
32.51mm
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
