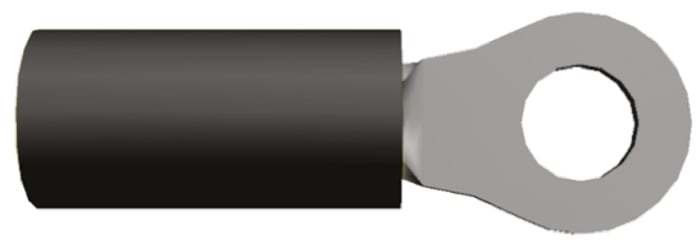

TE Connectivity, PIDG, STRATO-THERM Insulated Ring Terminal, M5 Stud Size, 2.6mm² to 6.6mm² Wire Size, Black
Temporarily out of stock
Back order for despatch on 04/08/2021
$ 4.474
Each (In a Box of 500)
Live stock
Temporarily out of stock
Back order for despatch on 04/08/2021
Product details
TE Connectivity PIDG STRATO-THERM Ring Tongue Wire Crimp Terminals
PIDG STRATO-THERM high temperature ring tongue wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a PTFE colour coded insulation sleeve. These PIDG STRATO-THERM ring tongue wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
TE Connectivity PIDG Terminals
Specifications
Brand
TE Connectivity
Series
PIDG, STRATO-THERM
Insulation
Insulated
Insulation Material
PTFE
Inner Ring Diameter
0.197in
Outer Ring Diameter
0.375in
Minimum Wire Size mm²
2.6mm²
Maximum Wire Size mm²
6.6mm²
Minimum Wire Size AWG
12AWG
Maximum Wire Size AWG
10AWG
Stud Size
M5
Colour
Black
Contact Plating
Nickel
Contact Material
Copper
Thickness
1.07mm
Overall Length
1.083in
