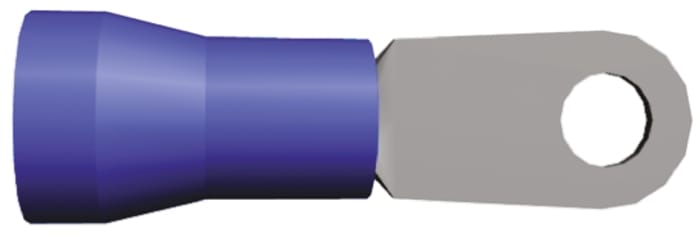

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M6 (1/4) Stud Size, 10.5mm² to 16.77mm² Wire Size, Blue
Temporarily out of stock
Back order for despatch on 06/15/2021
$ 1,036.89
1 Pack of 1000
Live stock
Temporarily out of stock
Back order for despatch on 06/15/2021
Product details
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
TE Connectivity Plasti-Grip Terminals
Specifications
Brand
TE Connectivity
Series
PLASTI-GRIP
Insulation
Insulated
Insulation Material
Vinyl
Inner Ring Diameter
6.73mm
Outer Ring Diameter
12.7mm
Minimum Wire Size mm²
10.5mm²
Maximum Wire Size mm²
16.77mm²
Minimum Wire Size AWG
6AWG
Maximum Wire Size AWG
6AWG
Stud Size
M6 (1/4)
Colour
Blue
Contact Plating
Tin
Contact Material
Copper
Thickness
1.14mm
Overall Length
46.84mm
