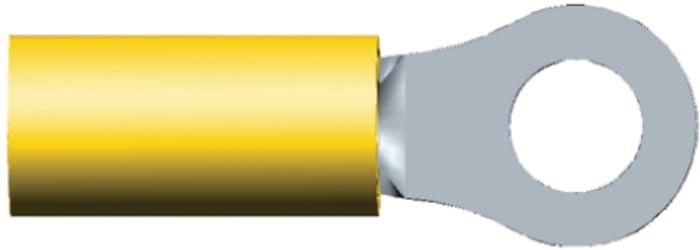

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M5 Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow
Temporarily out of stock
$ 0.286
Each (In a Pack of 500)
Buy in bulk
| quantity | Unit price |
|---|---|
| 500 - 500 | $ 0.286 |
| 1000 - 2000 | $ 0.275 |
| 2500 - 4500 | $ 0.258 |
| 5000+ | $ 0.232 |
Live stock
Temporarily out of stock
Product details
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
TE Connectivity Plasti-Grip Terminals
Specifications
Brand
TE Connectivity
Series
PLASTI-GRIP
Insulation
Insulated
Insulation Material
Vinyl
Minimum Wire Size mm²
2.6mm²
Maximum Wire Size mm²
6.6mm²
Minimum Wire Size AWG
12AWG
Maximum Wire Size AWG
10AWG
Stud Size
M5
Colour
Yellow
Contact Plating
Tin
Contact Material
Copper
Overall Length
27.89mm
