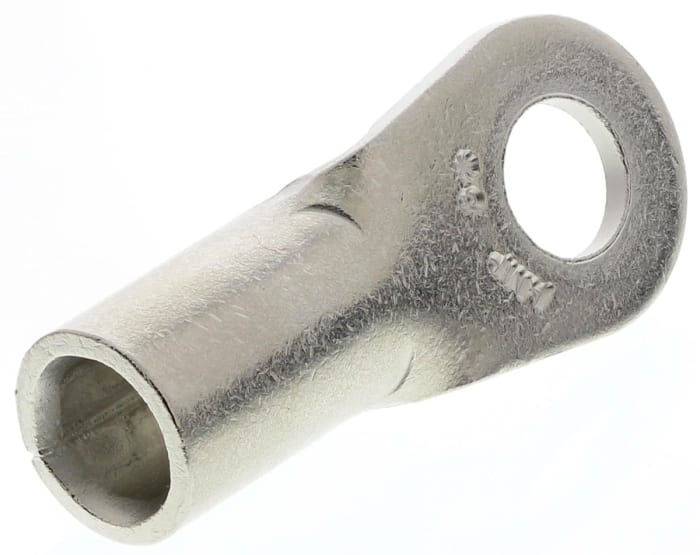

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M5 Stud Size, 6.6mm² to 10.5mm² Wire Size
Temporarily out of stock
$ 1,319.61
1 Box of 2000
Live stock
Temporarily out of stock
Product details
TE Connectivity SOLISTRAND STRATO-THERM Heat Resistant Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM heat resistant ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM heat resistant ring tongue crimp terminals are made from nickel plated electrolytic copper and are designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM heat resistant ring tongue crimp terminals is 343°C (650°F)
TE Connectivity STRATO-THERM Terminals and Splices
Specifications
Brand
TE Connectivity
Series
STRATO-THERM
Insulation
Uninsulated
Inner Ring Diameter
5mm
Outer Ring Diameter
10.31mm
Minimum Wire Size mm²
6.6mm²
Maximum Wire Size mm²
10.5mm²
Minimum Wire Size AWG
8AWG
Maximum Wire Size AWG
8AWG
Stud Size
M5
Contact Material
Copper
Contact Plating
Nickel
Overall Length
24.1mm
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
