TE Connectivity, FASTIN-FASTON .187 Uninsulated Spade Connector, 4.75 x 0.81mm Tab Size, 1mm² to 2.5mm²
110 in stock in the UK
$ 7,769.72
1 Pack of 72000
Live stock
110 in stock in the UK
Product details

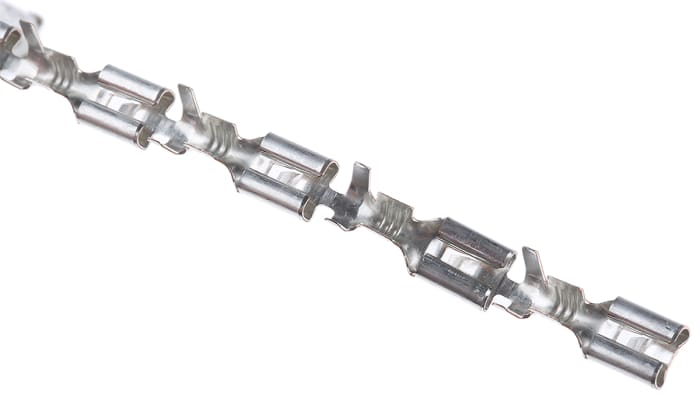

TE Connectivity FASTIN FASTON Series 187 Quick Connect Receptacle Crimp Terminals
FASTIN FASTON 187 series quick connect straight crimp receptacles designed for quick and efficient connection and reliability. These FASTIN FASTON 187 receptacle terminals have a locking lance that ensures secure retention when snapped into housings and a step down insulation support barrel to enable the axial alignment of conductor strands to be maintained. Tapering walls at the rear of these FASTIN FASTON 187 receptacles prevent over insertion of shoulderless tabs. The "F" style crimp terminations of these FASTIN FASTON 187 series quick connect straight receptacles enable stable electrical and mechanical performance as well as resistance to vibration and corrosion
TE Connectivity FASTIN-FASTON™ Range
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
1mm²
Maximum Wire Size mm²
2.5mm²
Gender
Female
Insulation
Uninsulated
Tab Size
4.75 x 0.81mm
Minimum Wire Size AWG
17AWG
Maximum Wire Size AWG
13AWG
Termination Method
Crimp
Contact Material
Phosphor Bronze
Overall Length
15mm
Contact Plating
Tin
Series
FASTIN-FASTON .187
