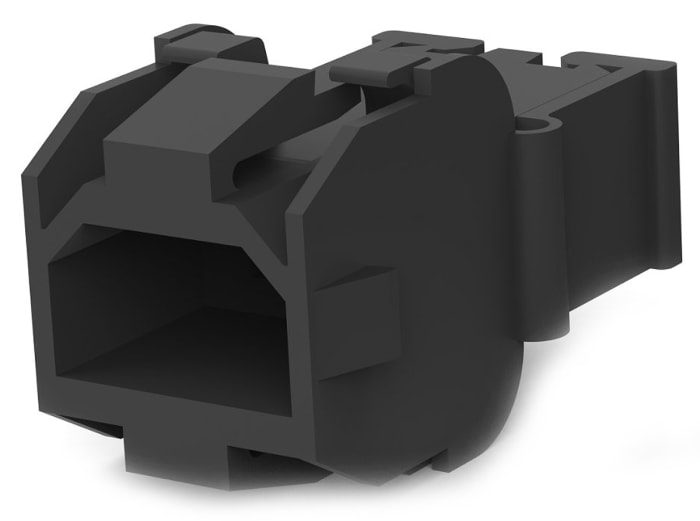

TE Connectivity, FASTIN-FASTON 110 Male Connector Housing, 5mm Pitch, 2 Way, 1 Row
Temporarily out of stock
Back order for despatch on 06/08/2021
$ 1.289
Each (In a Bag of 800)
Live stock
Temporarily out of stock
Back order for despatch on 06/08/2021
Product details
TE Connectivity FASTIN-FASTON Series 110 Receptacle and Tab Contact Housings
A range of plug style and receptacle style housings for use with FASTIN-FASTON Series 110 contacts. The plug style housings will accommodate FASTIN-FASTON series 110 receptacle contacts, whilst the receptacle style housings will accommodate FASTIN-FASTON series 110 tab style contacts. These FASTIN-FASTON 110 receptacle and plug housings enable the attachment of up to eight separate circuits with a maximum of 20 leads and are primarily used as harness connectors which can be free hanging or panel mounted. Typical applications for these FASTIN-FASTON 110 housings include washers, dryers, electric ranges and other appliances as well as in automotive wiring applications.
TE Connectivity FASTIN-FASTON™ Range
Specifications
Brand
TE Connectivity
Number Of Contacts
2
Number Of Rows
1
Pitch
5mm
Gender
Male
Mounting Type
Cable Mount
Series
FASTIN-FASTON 110
For Use With
Timer Connector
Body Orientation
Straight
Housing Material
PBT
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
