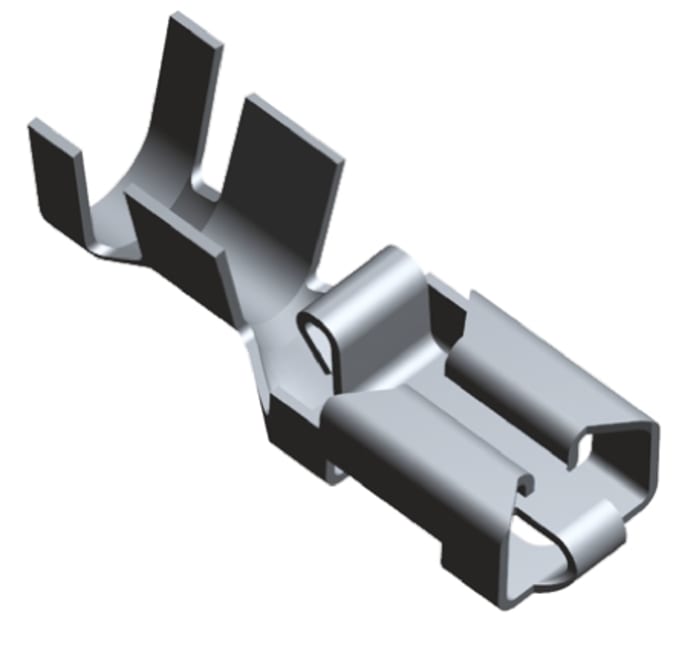

TE Connectivity, Positive Lock .250 Mk I Spade Connector, 3mm² to 6mm²
Temporarily out of stock
$ 1,106.25
1 Pack of 10000
Live stock
Temporarily out of stock
Product details
TE Connectivity Positive Lock Connector Contacts - MK I 250 Series
MK I 250 Series positive lock receptacle and flag style crimp terminals with reduced insertion force and snap action locking which accept a wire size range of 20 to 10 AWG. These Positive Lock crimp receptacles lock onto the mating tab terminals containing holes or dimples and make a mechanical 'snap' when correctly positioned and can only be removed when an integral depressor on the receptacle terminal is deflected.
TE Connectivity Positive Lock Range
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
3mm²
Maximum Wire Size mm²
6mm²
Gender
Female
Minimum Wire Size AWG
12AWG
Maximum Wire Size AWG
10AWG
Termination Method
Crimp
Contact Material
Brass
Contact Plating
Tin
Series
Positive Lock .250 Mk I
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
