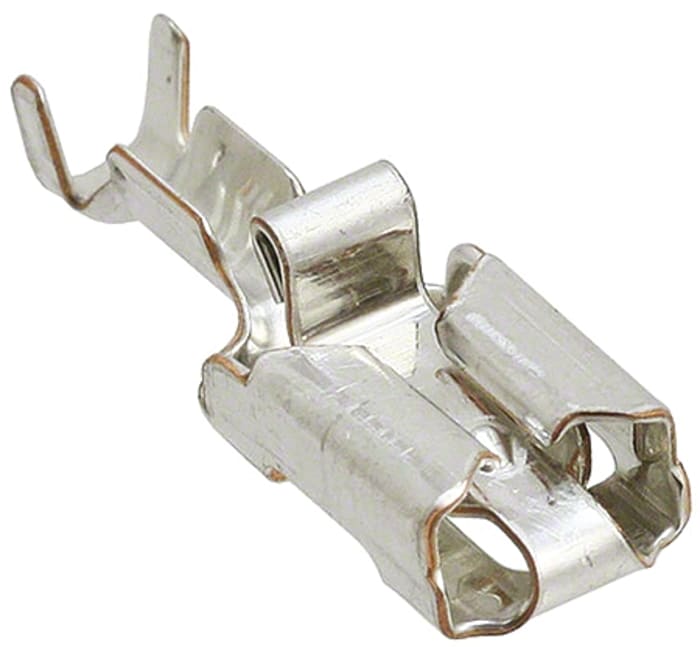

TE Connectivity, Positive Lock .250 Mk I Uninsulated Spade Connector, 6.35 x 0.81mm Tab Size, 0.5mm² to 1.5mm²
Temporarily out of stock
Back order for despatch on 04/27/2021
$ 0.357
Each (In a Pack of 500)
Live stock
Temporarily out of stock
Back order for despatch on 04/27/2021
Product details
TE Connectivity Positive Lock Connector Contacts - MK I 250 Series
MK I 250 Series positive lock receptacle and flag style crimp terminals with reduced insertion force and snap action locking which accept a wire size range of 20 to 10 AWG. These Positive Lock crimp receptacles lock onto the mating tab terminals containing holes or dimples and make a mechanical 'snap' when correctly positioned and can only be removed when an integral depressor on the receptacle terminal is deflected.
TE Connectivity Positive Lock Range
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
0.5mm²
Maximum Wire Size mm²
1.5mm²
Insulation
Uninsulated
Gender
Female
Tab Size
6.35 x 0.81mm
Minimum Wire Size AWG
20AWG
Maximum Wire Size AWG
15AWG
Termination Method
Crimp
Contact Material
Phosphor Bronze
Overall Length
22.9mm
Contact Plating
Tin
Series
Positive Lock .250 Mk I
