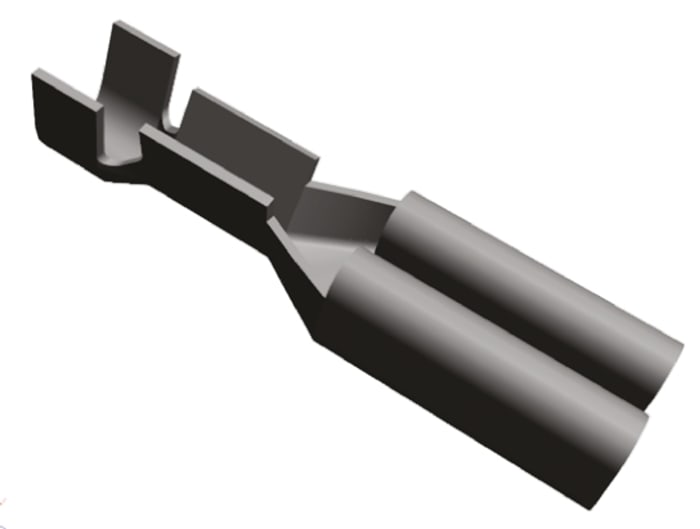

TE Connectivity, FASTIN-FASTON .110 Uninsulated Spade Connector, 2.79 x 0.51mm Tab Size, 0.3mm² to 0.6mm²
16 in stock in the UK
$ 468.96
1 Pack of 10000
Live stock
16 in stock in the UK
Product details
TE Connectivity FASTIN FASTON Series 110 Quick Connect Receptacle Crimp Terminals
FASTIN FASTON 110 series quick connect straight crimp receptacle terminals designed for quick and efficient connection and reliability. These FASTIN FASTON 110 receptacle terminals have a locking lance that ensures secure retention when snapped into housings and a step down insulation support barrel to enable the axial alignment of conductor strands to be maintained. Tapering walls at the rear of these FASTIN FASTON 110 receptacle crimp terminals prevent over insertion of shoulderless tabs. The "F" style crimp terminations of these FASTIN FASTON 110 series quick connect straight receptacle terminals enable stable electrical and mechanical performance as well as resistance to vibration and corrosion
TE Connectivity FASTIN-FASTON™ Range
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
0.3mm²
Maximum Wire Size mm²
0.6mm²
Insulation
Uninsulated
Gender
Female
Tab Size
2.79 x 0.51mm
Minimum Wire Size AWG
22AWG
Maximum Wire Size AWG
20AWG
Termination Method
Crimp
Contact Material
Brass
Contact Plating
Tin
Overall Length
14mm
Series
FASTIN-FASTON .110
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
