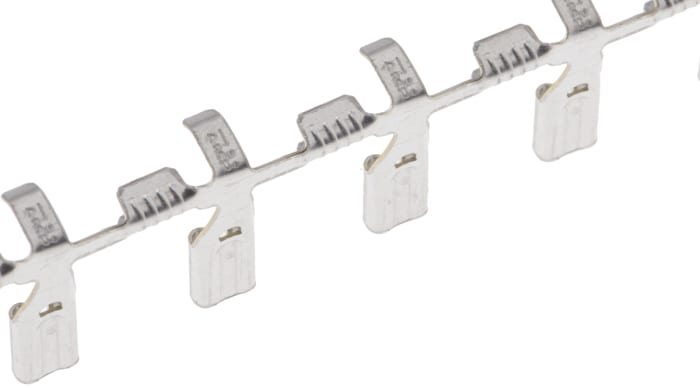

TE Connectivity, FASTON .110 Uninsulated Spade Connector, 2.79 x 0.79mm Tab Size, 0.3mm² to 0.8mm²
Temporarily out of stock
$ 1,565.31
1 Pack of 22500
Live stock
Temporarily out of stock
Product details
TE Connectivity FASTON 110 Series Quick Connect Flag Receptacle Crimp Terminals with Tab Lok
FASTON 110 series quick connect flag style crimp receptacle terminals designed for quick and efficient connection in applications where space is an important factor by connecting with the mating tab at right angles to the conductor. These FASTON 110 series quick connect flag style crimp receptacle terminals use Tab-Lok style crimp terminations where a tab on the wire barrel is inserted through a slot in the terminal then crimped by being flattened between two lances which are then locked over the tab. The rear of these FASTON 110 series quick connect flag style crimp receptacles incorporates a lance stop to prevent over-insertion of tabs.
Faston
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
0.3mm²
Maximum Wire Size mm²
0.8mm²
Insulation
Uninsulated
Tab Size
2.79 x 0.79mm
Tab Width
2.79mm
Tab Thickness
0.79mm
Minimum Wire Size AWG
22AWG
Maximum Wire Size AWG
18AWG
Termination Method
Crimp
Contact Material
Brass
Contact Plating
Tin
Overall Length
8mm
Series
FASTON .110
