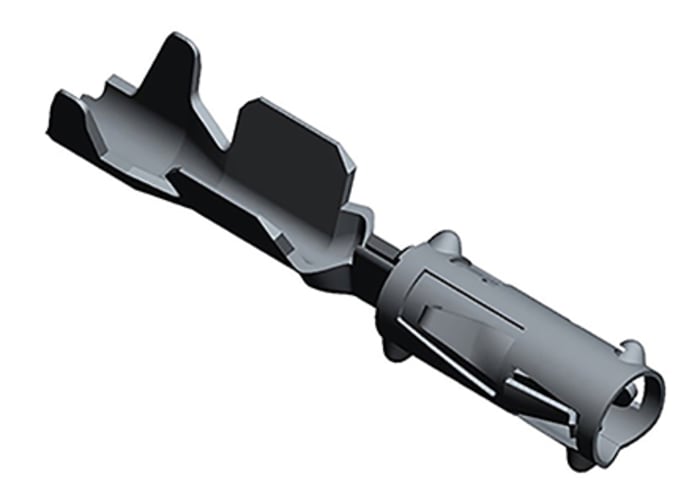

Molex, CP Female Crimp Terminal Contact 64323-1029
880 in stock in the UK
$ 746.21
1 Pack of 5500
Live stock
880 in stock in the UK
Product details
CMC Hybrid Connector, CP0.635 mm Terminals - 64322 Series
CP terminals for use in the CMC hyrbid connector system. These terminals are available in 1.50 mm and 0.635 mm widths and are designed to support low, medium and high current data requirements. The terminals have a 2 part design with a high conductivity copper alloy body and a stainless steel terminal box. This robust design enables the terminals to perform in high conductivity applications in harsh environments. These CP terminals are available with different platings and to suit a range of wire sizes
Molex CMC Hybrid Connectors
Specifications
Brand
Molex
Gender
Female
For Use With
CMC Connector Housing
Series
CP
Minimum Wire Size mm²
0.5mm²
Termination Method
Crimp
Maximum Wire Size mm²
1mm²
Contact Plating
Tin
Contact Material
Copper
Series Number
64323
Maximum Contact Resistance
4mΩ
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+125°C
