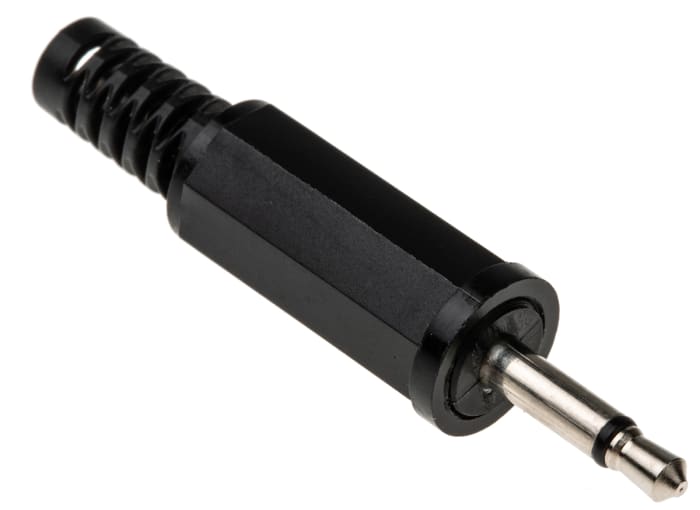

Lumberg Cable Mount Mono Jack Plug, 2Pole 500mA

RS Stock No. 190-3276
Brand Lumberg
Manufacturers Part No. KLS 10

Temporarily out of stock

Temporarily out of stock

$ 0.763

Each (In a Bag of 100)

Lumberg Cable Mount Mono Jack Plug, 2Pole 500mA

Live stock

Temporarily out of stock

Product details

2.5 mm Male Jack Plugs

From Lumberg, this phone audio jack connector is suitable for high quality applications. With an ergonomic hexagonal housing, this cable mounted connector also has an integrated strain relief for bend protection, reducing damage to the connector caused by every day wear and tear.

With a nickel plated contact and insulating body material, the jack plug is cost effective and reliable.

Jack plugs, or phone connectors, are prevalent in domestic and commercial hi-fi applications, but also have uses in computing and commercial public address systems. Where ever a custom audio set up is required, you will likely find a need for jack connectors.

2.5mm RS

Specifications

Brand

Lumberg

Gender

Male

Mounting Type

Cable Mount

Type

Mono

Body Orientation

Straight

Termination Method

Solder

Current Rating

500mA

Housing Material

PP

Voltage Rating

34 V ac/dc

Contact Material

Brass

No of Poles/ Way

2

Technical Document

RoHS Certificate of Compliance

Statement of Conformity

Lumberg KLS 10 JISC 6560, 2,5 mm
