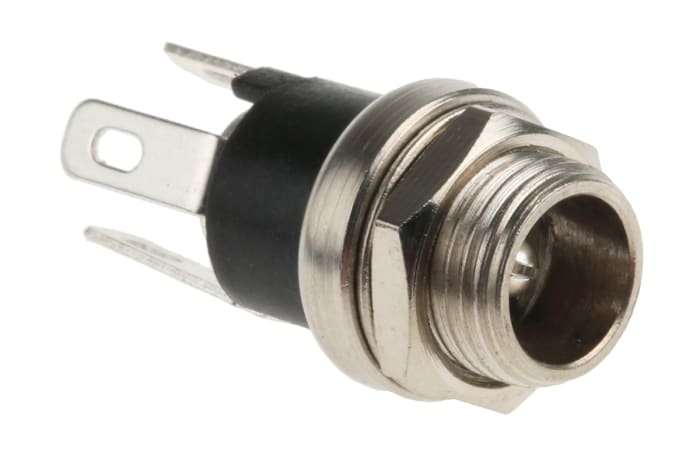

Lumberg, 16 DC Socket Rated At 500.0mA, 12.0 V, Panel Mount, length 13.2mm, Nickel, Silver
RS Stock No. 190-3254
Brand Lumberg
Manufacturers Part No. 1614 19
Temporarily out of stock
Back order for despatch on 04/29/2021
Temporarily out of stock
$ 3.632
Each (In a Bag of 250)
Lumberg, 16 DC Socket Rated At 500.0mA, 12.0 V, Panel Mount, length 13.2mm, Nickel, Silver
Live stock
Temporarily out of stock
Back order for despatch on 04/29/2021
Product details
1614 Chassis Socket
From Lumberg, the 1614 series chassis sockets are built with superb quality. With a break contact and solder wyes termination, the chassis socket is back mounted for a flush and secure fitting. All models are highly reliable and excellent quality.
Lumberg Connectors - IP40
Specifications
Brand
Lumberg
DC Power Connector Type
DC Socket
Current Rating
500.0mA
Body Orientation
Straight
Voltage Rating
12.0 V
Width
10.8 (Dia.)mm
Length
13.2mm
Mounting Type
Panel Mount
Pin Diameter
2.1mm
Contact Plating
Nickel, Silver
Contact Material
Brass
Series
16
Technical Document
