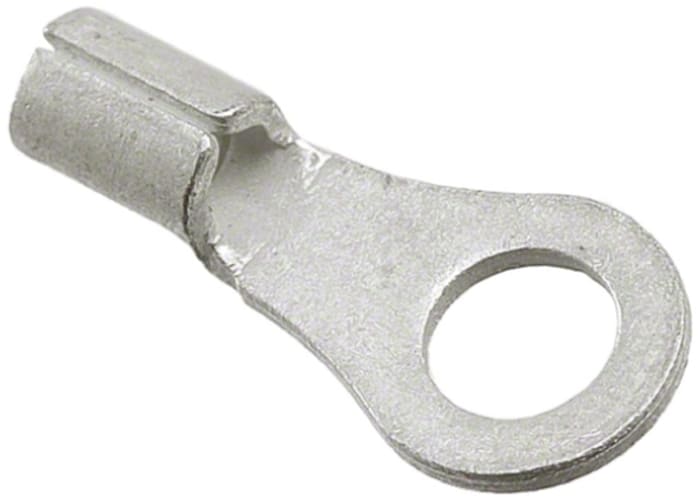

Molex, VersaKrimp Uninsulated Ring Terminal, M3 to M3.5 (#5 to #6) Stud Size, 0.5mm² to 1mm² Wire Size
74 in stock in the UK
$ 197.98
1 Pack of 1000
Live stock
74 in stock in the UK
Product details
Molex VersaKrimp Uninsulated Crimp Ring Terminals
Avikrimp™ insulated metric crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are made from oxygen free copper with tin plating and have a tin plated brass ferrule. A double crimp is created with both the conductor and insulation which provides good vibration resistance. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws.
Specifications
Brand
Molex
Series
VersaKrimp
Insulation
Uninsulated
Inner Ring Diameter
3.79mm
Outer Ring Diameter
6.45mm
Minimum Wire Size mm²
0.5mm²
Maximum Wire Size mm²
1mm²
Stud Size
M3 to M3.5 (#5 to #6)
Contact Plating
Tin
Contact Material
Copper Alloy
Thickness
0.71mm
Overall Length
11.5mm
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
