Molex, Avikrimp Insulated Ring Terminal, M6 (1/4) Stud Size, 1mm² to 2.5mm² Wire Size
Temporarily out of stock
$ 272.21
1 Pack of 1000
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 1 | $ 272.21 |
| 2 - 4 | $ 258.59 |
| 5+ | $ 232.73 |
Live stock
Temporarily out of stock
Product details

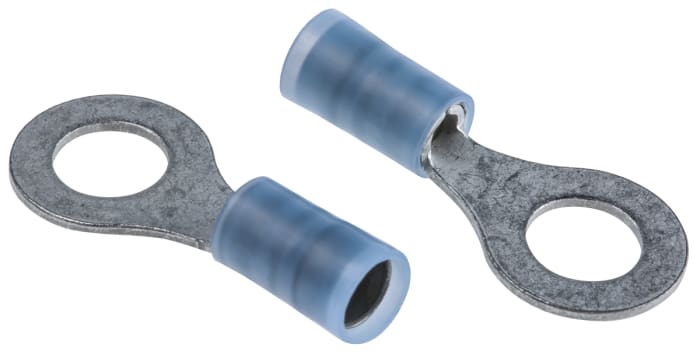

Molex Avikrimp Insulated Crimp Ring Terminals
Avikrimp™ insulated crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are made from copper with tin plating and have a tin plated brass ferrule. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws and are also available in different wire and stud sizes.
Specifications
Brand
Molex
Series
Avikrimp
Insulation
Insulated
Insulation Material
Polyamide
Inner Ring Diameter
6.61mm
Outer Ring Diameter
11.86mm
Minimum Wire Size mm²
1mm²
Maximum Wire Size mm²
2.5mm²
Stud Size
M6 (1/4)
Contact Plating
Tin
Contact Material
Copper Alloy
Thickness
0.79mm
Overall Length
21.3mm
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
