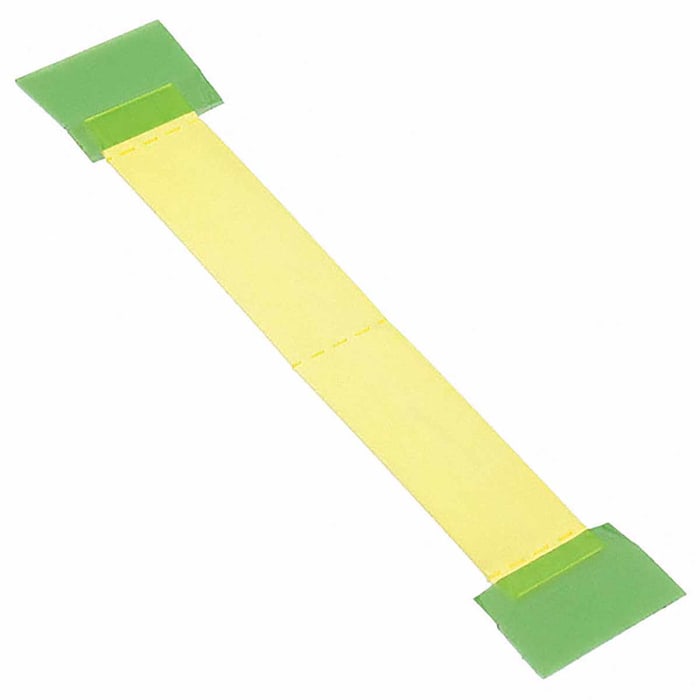

TE Connectivity HX-SCE Cable Marker, Pre-printed "0" ,White, Yellow
Temporarily out of stock
$ 1.190
Each (In a Box of 37)
Live stock
Temporarily out of stock
Product details
HX-SCE Identification Sleeves
HX-SCE markers are LFH (low fire hazard) shrinkable marking sleeves that have been designed for wire and cable identification. These cable markers have outstanding low fire hazard properties - low smoke, low toxicity and low flammability. Ideal for applications where a fire poses a risk to life and property such as in mass transit, rail, marine and industrial installations.
Heat Shrinkable Marker Systems
Specifications
Brand
TE Connectivity
Legend
0
Colour
White, Yellow
Length
50mm
Width
8.9 mm
Material
Radiation Cross Linked Polyolefin
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
Fire Behaviour
Self-extinguishing
Resistant To
Fluid, Solvents
Operating Temperature Range
-55 → +105 °C
Series
HX-SCE
Tensile Strength
7MPa
Standards Met
ABD0031 ISSUE F, AFNOR NF FR 16-101:1988, AITM 2.0038:1996, AMS DTL 23053, ASTM D2671, ASTM D570:BS 4G198:Pt3, ASTM D792 METHOD A, ASTM D882 METHOD A, ASTM E1354-13, ASTM E162-13, ASTM E662-13D, ASTM G154-06, BS 6853:1999, BS EN 60695-2-10:2013, BS EN ISO 4589-2, EN 45545-2: MARCH 2013, EN45545-2, IEC 60212 ED3.0, IEC 60684-2, LONDON UNDERGROUND STANDARD 1-085, MIL STD 202 METHOD 215, NFx70–100:1986, SAE AS5942 M
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
