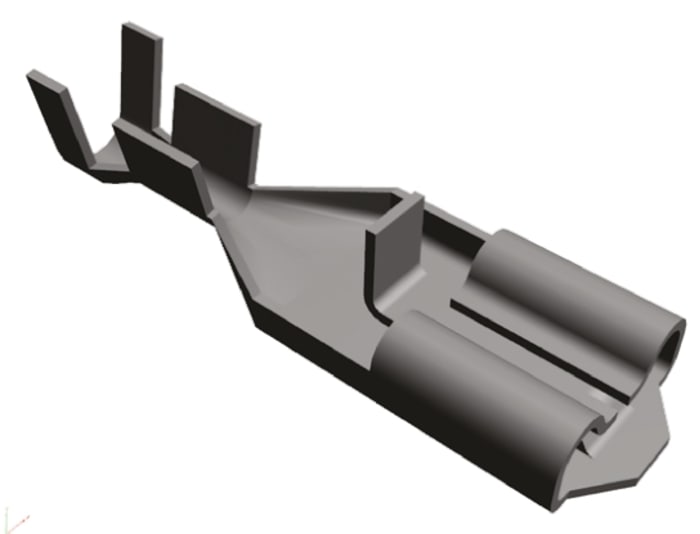

TE Connectivity, Positive Lock .250 Mk II Uninsulated Spade Connector, 6.35 x 0.81mm Tab Size, 0.8mm² to 2mm²
Temporarily out of stock
$ 292.47
1 Pack of 3500
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 1 | $ 292.47 |
| 2 - 3 | $ 283.86 |
| 4+ | $ 275.75 |
Live stock
Temporarily out of stock
Product details
TE Connectivity Positive Lock Connector Contacts - MK II 250 Series
MK II 250 Series positive lock receptacle and flag style crimp terminals with reduced insertion force and snap action locking which accept a wire size range of 20 to 10 AWG. These Positive Lock crimp receptacles lock onto the mating tab terminals containing holes or dimples and make a mechanical 'snap' when correctly positioned and can only be removed when an integral depressor on the receptacle terminal is deflected.
TE Connectivity Positive Lock Range
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
0.8mm²
Maximum Wire Size mm²
2mm²
Gender
Female
Insulation
Uninsulated
Tab Size
6.35 x 0.81mm
Minimum Wire Size AWG
18AWG
Maximum Wire Size AWG
10AWG
Contact Material
Brass
Termination Method
Crimp
Contact Plating
Tin
Series
Positive Lock .250 Mk II
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
