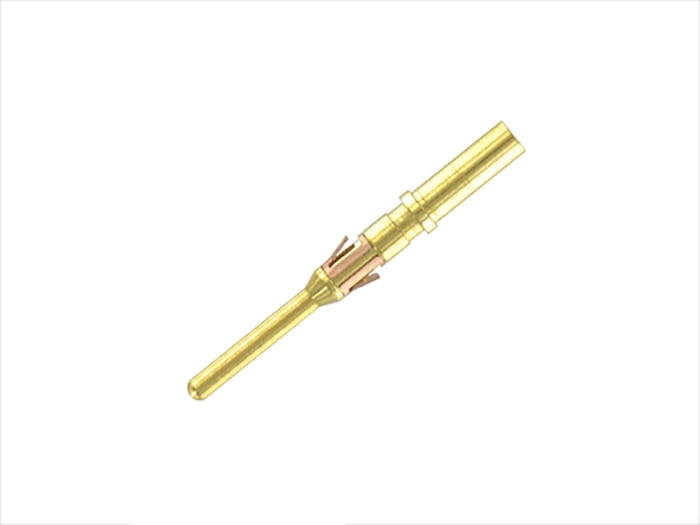

Souriau, RM size 16 13A Male Crimp Circular Connector Contact for use with MBG Series Connector, Wire size 22 →
RS Stock No. 190-3104
Brand Souriau
Manufacturers Part No. RM20M13K
Temporarily out of stock
Back order for despatch on 04/20/2021
Temporarily out of stock
$ 0.850
Each (In a Pack of 500)
Souriau, RM size 16 13A Male Crimp Circular Connector Contact for use with MBG Series Connector, Wire size 22 →
Live stock
Temporarily out of stock
Back order for despatch on 04/20/2021
Product details
Souriau Railway RC/RM Machined Contacts
From Souriau, this machined contact is designed with railway connector applications in mind. With a highly conductive copper alloy body, the contact also features a low contact resistance and excellent contact retention.
Souriau Railway RC/RM Machined Contacts
Specifications
Brand
Souriau
Gender
Male
Contact Size
16
Wire Size
22 → 20 AWG
Termination Method
Crimp
Series
RM
For Use With
MBG Series Connector
Current Rating
13A
Length
26mm
Contact Plating
Gold over Nickel
Voltage Rating
750 V ac
Contact Material
Brass
Maximum Contact Resistance
3mΩ
Mounting Type
Cable Mount
