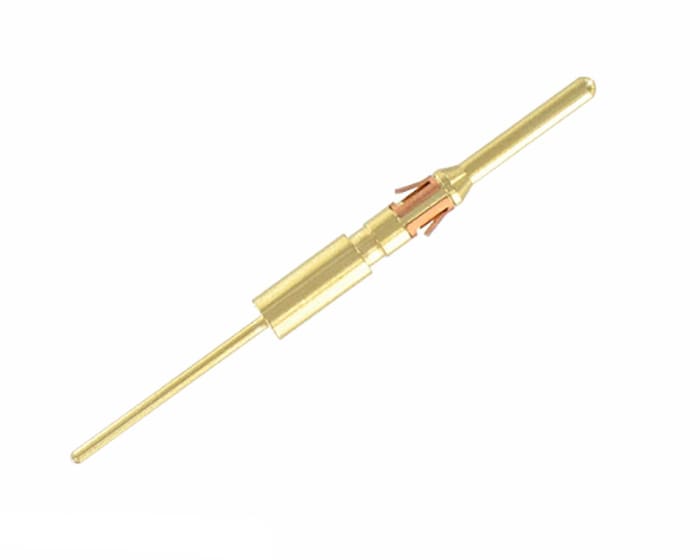

Souriau, RM size 16 7.5A Male Solder Circular Connector Contact for use with MBG Series Connector, MSX Series
Temporarily out of stock
$ 1.161
Each (In a Pack of 500)
Live stock
Temporarily out of stock
Product details
Souriau Railway RC/RM Machined Contacts
From Souriau, this machined contact is designed with railway connector applications in mind. With a highly conductive copper alloy body, the contact also features a low contact resistance and excellent contact retention.
Souriau Railway RC/RM Machined Contacts
Specifications
Brand
Souriau
Gender
Male
Contact Size
16
Termination Method
Solder
Series
RM
For Use With
MBG Series Connector, Msx Series Connector, SMS Series Connector, SMSIP Series Connector, UTG Series Connector, UTL Series Connector, UTO Series Connector, UTP Series Connector, UTS Series Connector, UTV Series Connector
Current Rating
7.5A
Length
34.7mm
Contact Plating
Gold over Nickel
Contact Material
Brass
Maximum Contact Resistance
<lteq/>3mΩ
Mounting Type
PCB Mount
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
