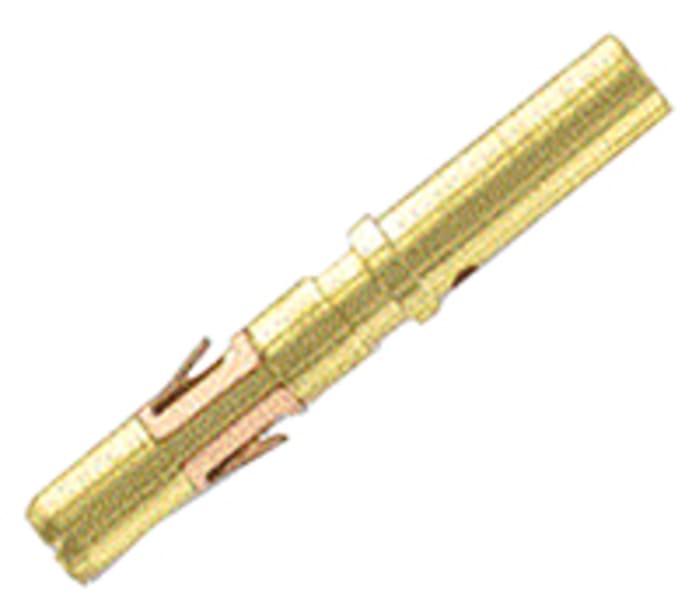

Souriau, RC size 16 13A Female Crimp Circular Connector Contact for use with MBG Series Connector, MSX Series
Temporarily out of stock
$ 0.812
Each (In a Pack of 500)
Live stock
Temporarily out of stock
Product details
Souriau Railway RC/RM Machined Contacts
From Souriau, this machined contact is designed with railway connector applications in mind. With a highly conductive copper alloy body, the contact also features a low contact resistance and excellent contact retention.
Souriau Railway RC/RM Machined Contacts
Specifications
Brand
Souriau
Gender
Female
Contact Size
16
Wire Size
22 → 20 AWG
Termination Method
Crimp
Series
RC
For Use With
MBG Series Connector, Msx Series Connector, SMS Series Connector, SMSIP Series Connector, UTG Series Connector, UTL Series Connector, UTO Series Connector, UTP Series Connector, UTS Series Connector, UTV Series Connector
Current Rating
13A
Length
18.21mm
Contact Plating
Gold over Nickel
Voltage Rating
750 V ac
Contact Material
Brass
Maximum Contact Resistance
3mΩ
Mounting Type
Cable Mount
