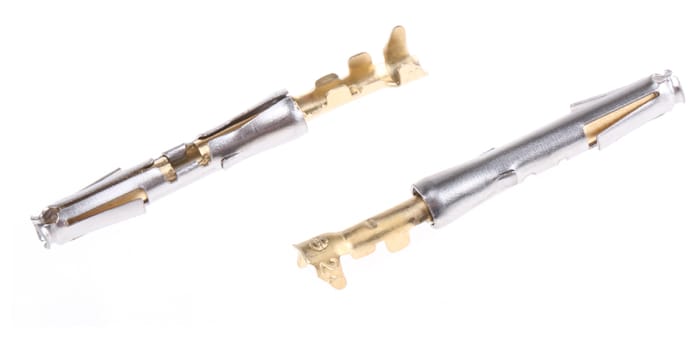

Souriau, SC size 20 5A Female Crimp Circular Connector Contact for use with Plastic Sealok Connector, Wire size 26
Temporarily out of stock
Back order for despatch on 07/13/2021
$ 0.615
Each (In a Pack of 3000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 3000 | $ 0.615 |
| 6000 - 9000 | $ 0.584 |
| 12000+ | $ 0.560 |
Live stock
Temporarily out of stock
Back order for despatch on 07/13/2021
Product details
Crimp Contacts
High quality stamped pins and sockets made from copper alloy and plated gold over nickel in contact area. Cable insulation range for 26//24 awg contacts is 0.89-1.57mm diameter, and for 22//20 awg contacts 1.17-2.08mm.
Sealok - Plastic
Specifications
Brand
Souriau
Gender
Female
Contact Size
20
Wire Size
26 → 24 AWG
Termination Method
Crimp
Series
SC
For Use With
Plastic Sealok Connector
Current Rating
5A
Length
20.6mm
Contact Plating
Gold over Nickel
Voltage Rating
1.5 kV ac
Contact Material
Copper Alloy
Maximum Contact Resistance
15mΩ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+125°C
Mounting Type
Cable Mount, Chassis Mount
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
