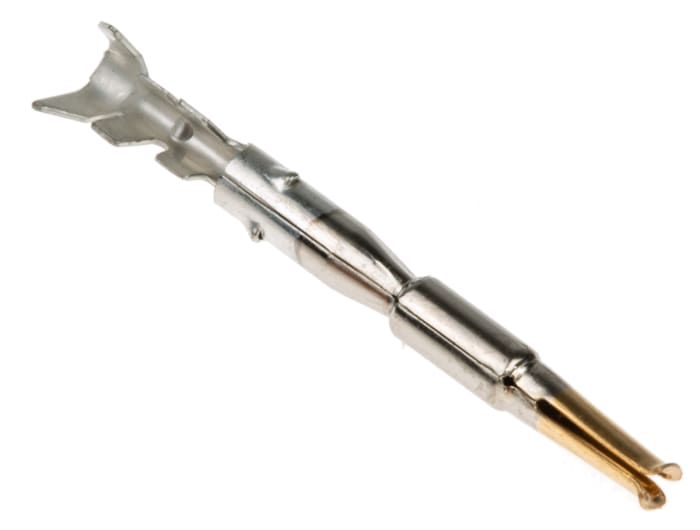

Souriau, CL size 20 5A Female Crimp Circular Connector Contact for use with Clipper Series Connectors, Wire size 22
Temporarily out of stock
Back order for despatch on 06/08/2021
$ 0.588
Each (In a Pack of 500)
Buy in bulk
| quantity | Unit price |
|---|---|
| 500 - 500 | $ 0.588 |
| 1000 - 2000 | $ 0.559 |
| 2500 - 4500 | $ 0.534 |
| 5000+ | $ 0.505 |
Live stock
Temporarily out of stock
Back order for despatch on 06/08/2021
Product details
Crimp Contacts
Contacts for standard density connectors (1.6mm diameter) and high density connectors (1.0mm diameter).Blanking pins are available for filling unused 1.6mm cavities.Use Crimp Tool stock no. 194-2264 for 1.0 and 1.6mm contacts.,Alternatively use Universal Crimp Tool Frame stock no. 848-391 with Die Set stock no. 158-8955 (for 1.6mm contacts only)
Souriau Clipper Series
Specifications
Brand
Souriau
Gender
Female
Contact Size
20
Wire Size
22 → 20 AWG
Termination Method
Crimp
Series
CL
For Use With
Clipper Series Connectors
Contact Type
Signal
Current Rating
5A
Contact Plating
Gold over Nickel
Contact Material
Copper Alloy
Maximum Contact Resistance
10mΩ
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+125°C
Mounting Type
Cable Mount
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
