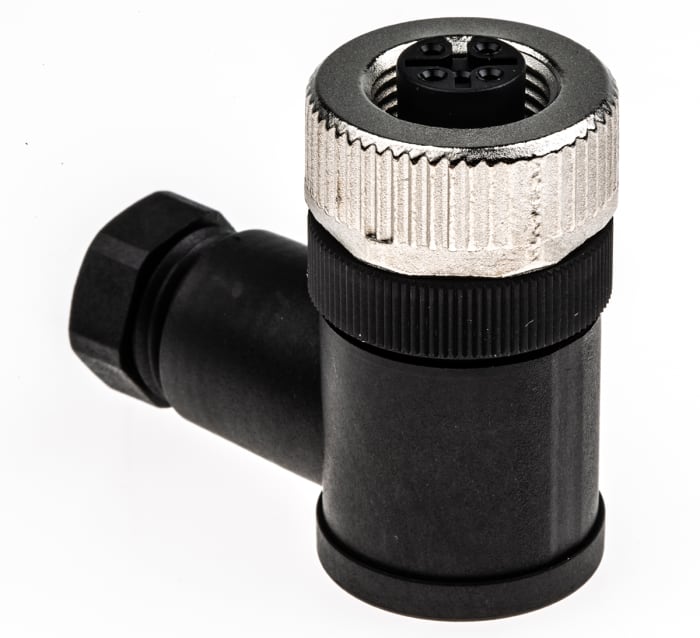

Binder Screw Connector, 4 Contacts, Cable Mount M12, IP67
Temporarily out of stock
$ 8.185
Each (In a Box of 100)
Live stock
Temporarily out of stock
Product details
M12 Re-wireable Plugs & Sockets
From Binder, the 713 series of M12 Euro style sensor connectors designed for cable mounting. The re-wireable circular connectors have a threaded mating mechanism with A coding, preventing incorrect mating. Along with an IP67 ingress rating, the 713 series of compact connectors are best suited to environments that demand a more rugged connector solution. Can be attached to M12 single-ended cable assemblies to make up jumper cables and interconnecting leads.
Process Control & Automation - Binder M8 and M12
Specifications
Brand
Binder
Number Of Contacts
4
Plug/Socket
Socket
Mounting Type
Cable Mount
Connector Size
M12
Termination Method
Screw
Shell Size
20.5
Current Rating
4.0A
IP Rating
IP67
Contact Gender
Female
Voltage Rating
250.0 V
Mating Type
Threaded
Body Orientation
Right Angle
Series
713
Housing Material
Polymer
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
