3M 6 Way Unscreened Flat Ribbon Cable, 7.62 mm Width, Series 3365, 30m
Temporarily out of stock
$ 0.642
Each
Live stock
Temporarily out of stock
Product details

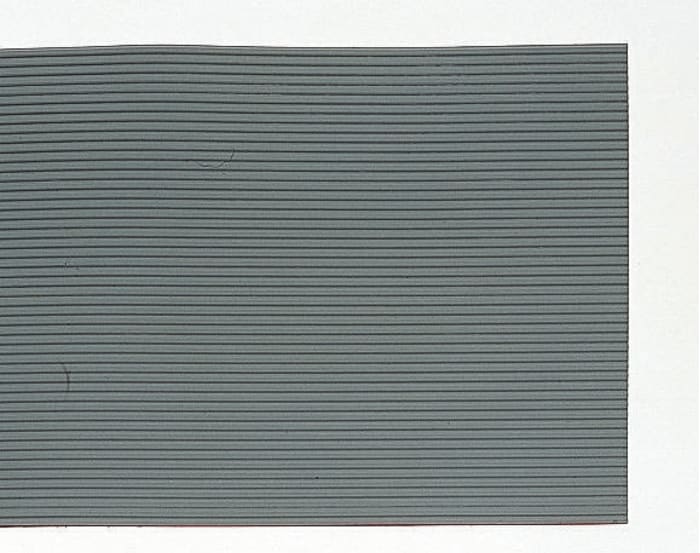

0.05in (1.27mm) Pitch Ribbon Cables-Type 3365
From 3M, the 3365 series of grey ribbon cable, 28 awg wire on 0.05in. centres, permits mass termination to a broad line of 3M IDC connectors. The 7x36 tinned stranded copper wire provides flexibility and extended product life. First conductor is identified by a red leading edge.
Standard
Specifications
Brand
3M
Number of Ways
6
Pitch
1.27mm
American Wire Gauge
28
Reel Length
30m
Width
7.62 mm
Cable Shape
Ribbon
Sheath Colour
Grey
Voltage Rating
300 V
Screened/Unscreened
Unscreened
Conductor Strand Type
Stranded
Number of Strands
7
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+105°C
Series
3365
Core Strands
7/36
Characteristic Impedance
102 Ω
Size of Strands
36
Capacitance
47.5 pF/m
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
