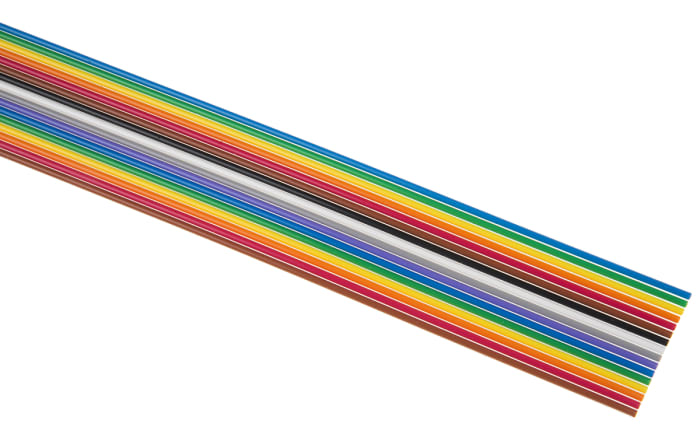

3M 16 Way Unscreened Flat Ribbon Cable, 20.32 mm Width, Series 3302, 30m
RS Stock No. 190-2041
Brand 3M
Manufacturers Part No. 3302-16 100FT
Temporarily out of stock
Back order for despatch on 04/27/2021
Temporarily out of stock
$ 3.032
Each
3M 16 Way Unscreened Flat Ribbon Cable, 20.32 mm Width, Series 3302, 30m
Live stock
Temporarily out of stock
Back order for despatch on 04/27/2021
Product details
3M 0.05in (1.27mm) Pitch Ribbon Cables - Type 3302
From 3M, the 3302 series of ribbon cable permits mass termination to a broad line of 3M IDC connectors. The stranded copper wire provides flexibility and extended product life.
Coloured-(Ribbon Cable)
Specifications
Brand
3M
Number of Ways
16
Pitch
1.27mm
American Wire Gauge
28
Reel Length
30m
Width
20.32 mm
Cable Shape
Ribbon
Sheath Colour
Multicoloured
Voltage Rating
300 V
Screened/Unscreened
Unscreened
Conductor Strand Type
Stranded
Number of Strands
7
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+105°C
Series
3302
Core Strands
7/0.127 mm
Characteristic Impedance
105 Ω
Size of Strands
0.127 mm
Capacitance
46.248 pF/m
