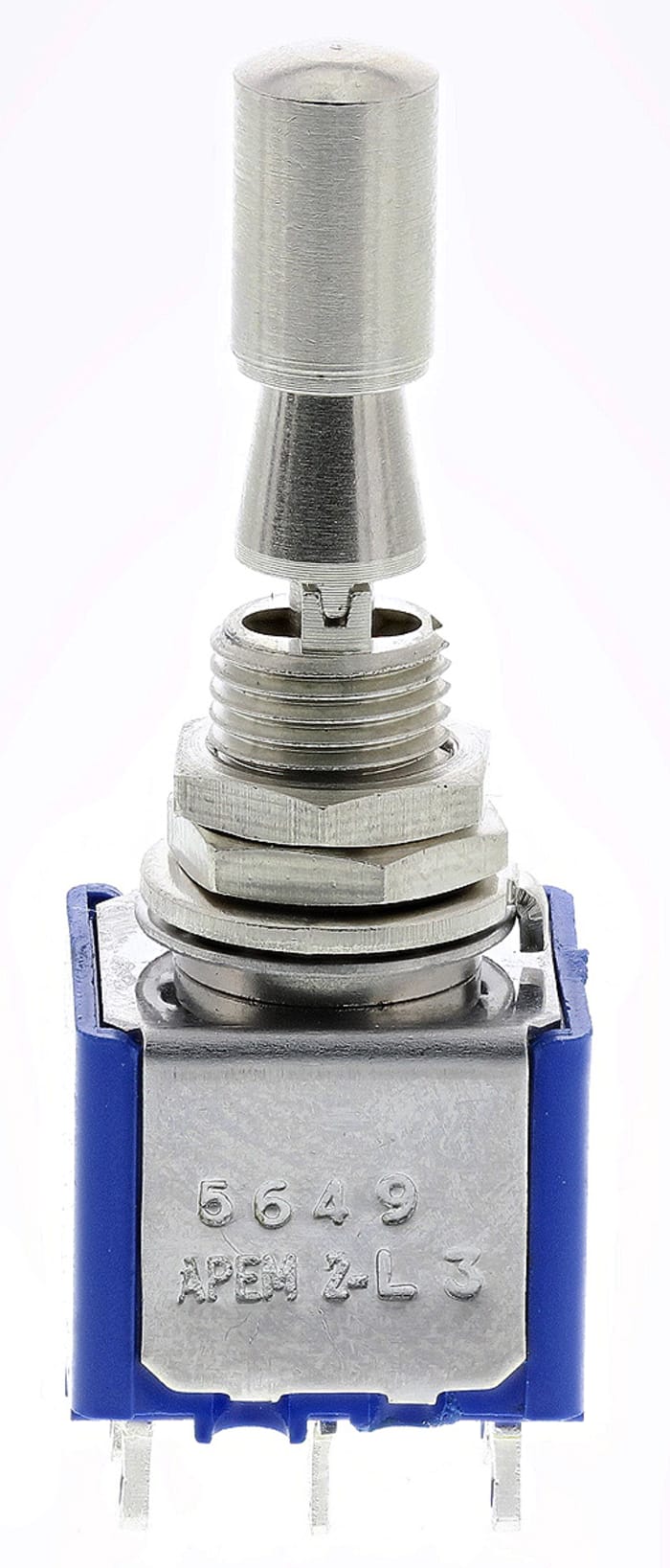

APEM DPDT Toggle Switch, On-Off-On, Panel Mount
61 in stock in the UK
$ 16.27
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 24 | $ 16.27 |
| 25 - 49 | $ 13.35 |
| 50 - 99 | $ 12.20 |
| 100 - 249 | $ 11.39 |
| 250+ | $ 10.42 |
Live stock
61 in stock in the UK
Product details
Toggle Switches Miniature, Locking Lever
Switches with a locking lever that is retained in one switch position and may only change over by being drawn out (against a spring retainer) and guided into the other position thus preventing accidental switching
Miniature Lockable Toggle Switches
Specifications
Brand
Apem
Contact Configuration
DPDT
Switch Operation
On-Off-On
Contact Current Rating
4 A @ 30 V dc
Mounting Type
Panel Mount
Terminal Type
Solder
Panel Cut Out Diameter
6.5mm
Actuator Length
15.1mm
Actuator Material
Nickel Plated Brass
Contact Resistance
10mΩ
Contact Material
Silver
Minimum Operating Temperature
-40°C
Panel Cut Out Size
6.5mm
Operating Temperature Range
-40 → +85°C
Mechanical Life
100000Operations
Maximum Operating Temperature
+85°C
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
