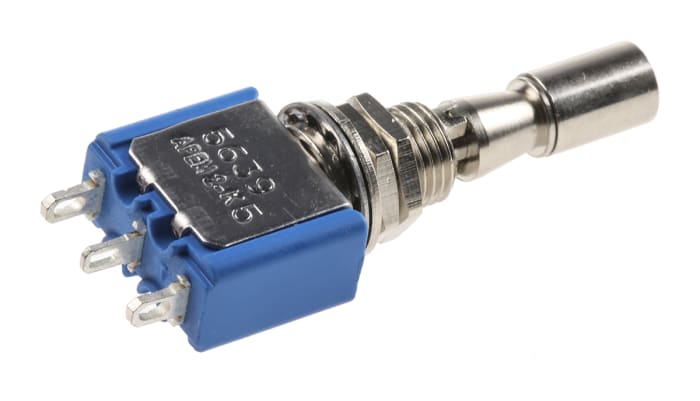

APEM SPDT Toggle Switch, On-Off-On, Panel Mount
72 in stock in the UK
$ 11.22
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 24 | $ 11.22 |
| 25 - 49 | $ 9.21 |
| 50 - 99 | $ 8.42 |
| 100 - 249 | $ 7.86 |
| 250+ | $ 7.18 |
Live stock
72 in stock in the UK
Product details
Toggle Switches Miniature, Locking Lever
Switches with a locking lever that is retained in one switch position and may only change over by being drawn out (against a spring retainer) and guided into the other position thus preventing accidental switching
Miniature Lockable Toggle Switches
Specifications
Brand
Apem
Contact Configuration
SPDT
Switch Operation
On-Off-On
Contact Current Rating
4 A @ 30 V dc
Mounting Type
Panel Mount
Terminal Type
Solder
Panel Cut Out Diameter
6.5mm
Actuator Length
15.1mm
Actuator Material
Nickel Plated Brass
Contact Resistance
10mΩ
Maximum Operating Temperature
+85°C
Contact Material
Silver
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Mechanical Life
100000Operations
Country of Origin
FR
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
