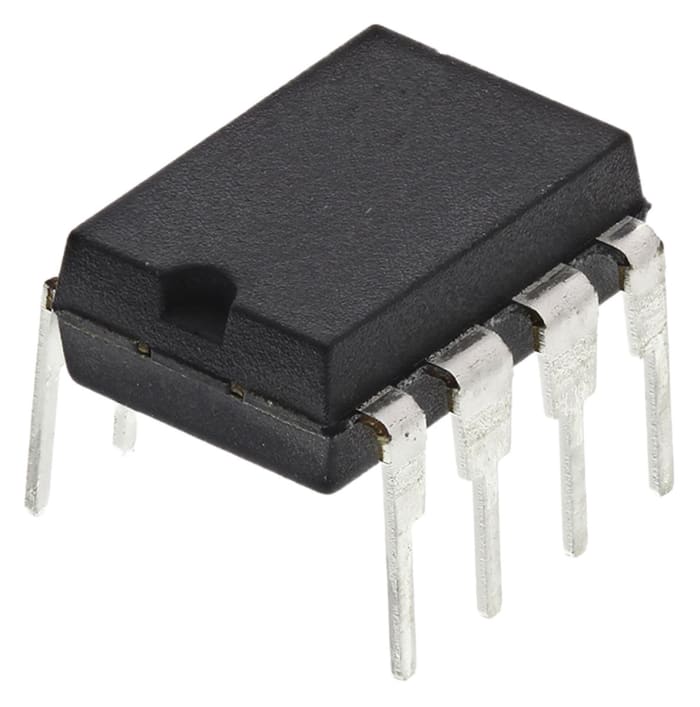

Maxim Integrated, MAX764CPA+ Switching Regulator, 1-Channel 260mA Adj./Fixed 8-Pin, PDIP
RS Stock No. 190-0598
Brand Maxim Integrated
Manufacturers Part No. MAX764CPA+
Temporarily out of stock
Temporarily out of stock
$ 4.800
Each (In a Pack of 2)
Maxim Integrated, MAX764CPA+ Switching Regulator, 1-Channel 260mA Adj./Fixed 8-Pin, PDIP
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 4.800 |
| 10 - 18 | $ 4.317 |
| 20+ | $ 4.511 |
Production pack (Tube)
Live stock
Temporarily out of stock
Product details
Inverting Switching Regulators, Maxim Integrated
Switching Voltage Regulators, Maxim Integrated
Specifications
Brand
Maxim Integrated
Maximum Output Current
260mA
Maximum Output Voltage
-16 V
Regulator Function
Buck Controller
Minimum Output Voltage
-1 V
Minimum Input Voltage
3 V
Maximum Input Voltage
16 V
Output Type
Adjustable, Fixed
Mounting Type
Through Hole
Number of Outputs
1
Pin Count
8
Package Type
PDIP
Switching Regulator
Yes
Line Regulation
0.12 %/mV
Load Regulation
0.008 %/mA
Maximum Operating Temperature
+70 °C
Length
9.91mm
Maximum Switching Frequency
300 kHz
Height
4.45mm
Width
7.87mm
Minimum Operating Temperature
0 °C
Dimensions
9.91 x 7.87 x 4.45mm
Country of Origin
PH
