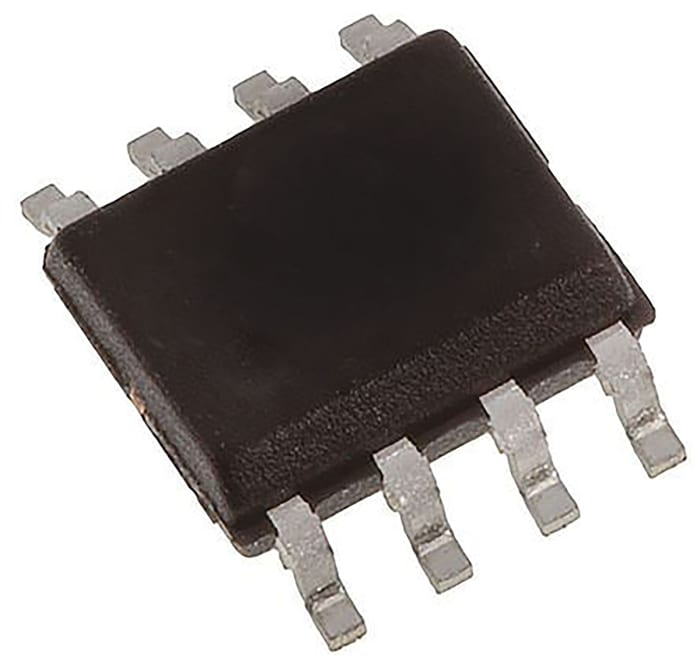

Maxim Integrated MAX765CSA+, 1-Channel, Step-Down/Up DC-DC Converter, Adjustable/Fixed, 68mA 8-Pin, SOIC
162 in stock in the UK
$ 4.827
Each (In a Pack of 2)
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 4.827 |
| 10 - 48 | $ 4.464 |
| 50 - 248 | $ 3.545 |
| 250+ | $ 3.283 |
Production pack (Tube)
Live stock
162 in stock in the UK
Product details
Inverting Switching Regulators, Maxim Integrated
Switching Voltage Regulators, Maxim Integrated
Specifications
Brand
Maxim Integrated
Minimum Output Voltage
-16 V
Maximum Output Voltage
-12 V, -1 V
Minimum Input Voltage
3 V
Maximum Input Voltage
16 V
Minimum Output Current
68mA
Maximum Output Current
120mA
Converter Type
Inverting, Non-Inverting, Step Down, Step Up
Number of Outputs
1
Output Type
Adjustable, Fixed
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
8
Maximum Operating Temperature
+70 °C
Minimum Operating Temperature
0 °C
Load Regulation
0.008 %/mA
Height
1.5mm
Length
5mm
Line Regulation
0.12 %/V
Width
4mm
Dimensions
5 x 4 x 1.5mm
Maximum Switching Frequency
0.3 MHz
Switching Regulator
Yes
Country of Origin
TH
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
MAX1480A/B/C/MAX1490A/B Complete, Isolated RS-485/RS-422 Data Interface Data Sheet
MAX764/MAX765/MAX766 -5V/-12V/-15V or Adjustable, High-Efficiency, Low IQ DC-DC Inverters Data Sheet
Datasheet
MAX1480A/B/C/MAX1490A/B Complete, Isolated RS-485/RS-422 Data Interface Data Sheet
