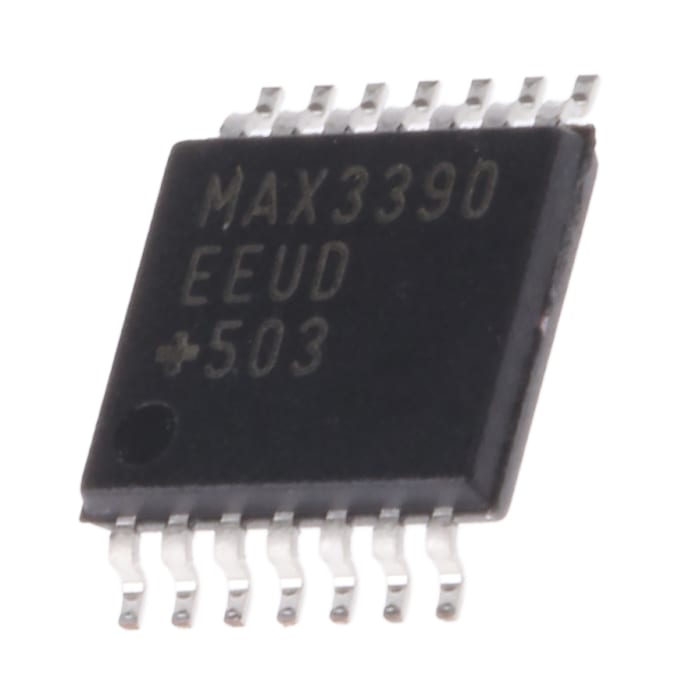

Maxim Integrated MAX3390EEUD+, Voltage Level Shifter Voltage Level Translator 4 BiCMOS, 14-Pin TSSOP
Temporarily out of stock
$ 4.015
Each (In a Pack of 5)
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 4.015 |
| 25 - 45 | $ 3.451 |
| 50+ | $ 3.416 |
Production pack (Tube)
Live stock
Temporarily out of stock
Product details
Line Drivers, Maxim Integrated
Other Line Drivers
Specifications
Brand
Maxim Integrated
Logic Family
LVCMOS, LVTTL
Mounting Type
Surface Mount
Number of Elements per Chip
4
Package Type
TSSOP
Pin Count
14
Output Type
3 State
Logic Function
Voltage Level Translator
Dimensions
5.1 x 4.5 x 0.95mm
Maximum Low Level Output Current
.02mA
Maximum High Level Output Current
-0.02mA
Translation
BiCMOS
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
1600ns
Maximum Operating Supply Voltage
5.5 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
1.65 V
Minimum Operating Temperature
-40 °C
Country of Origin
MY
