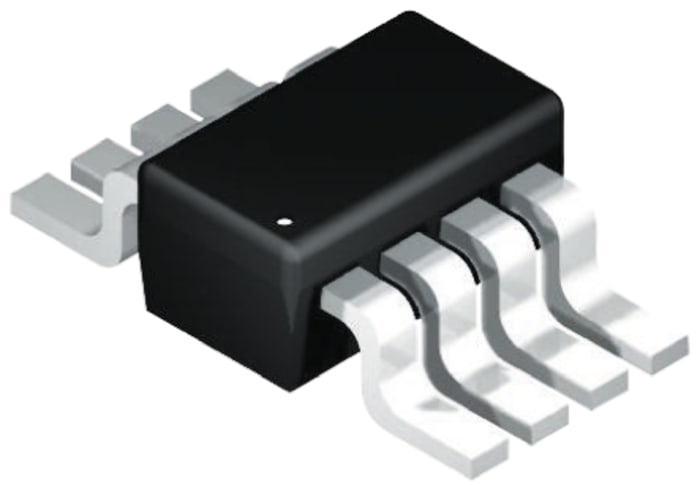

MAX4232AKA+T Maxim Integrated, CMOS, Op Amp, RRIO, 10MHz 1 kHz, 10 kHz, 2.7 → 5.5 V, 8-Pin SOT-23
2490 in stock in the UK
$ 1.003
Each (In a Pack of 10)
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 1.003 |
| 50 - 90 | $ 0.913 |
| 100 - 490 | $ 0.781 |
| 500 - 990 | $ 0.763 |
| 1000+ | $ 0.752 |
Production pack (Reel)
Live stock
2490 in stock in the UK
Product details
MAX423x, High-Output-Drive, 10MHz, 10V/μs, Rail-to-Rail I/O Operational Amplifiers with Shutdown, Maxim Integrated
Operational Amplifiers, Maxim Integrated
Specifications
Brand
Maxim Integrated
Amplifier Type
CMOS
Mounting Type
Surface Mount
Package Type
SOT-23
Power Supply Type
Dual
Number of Channels per Chip
2
Pin Count
8
Typical Single Supply Voltage
2.7 → 5.5 V
Typical Gain Bandwidth Product
10MHz
Typical Dual Supply Voltage
±1.35 to ±2.5V
Typical Slew Rate
10V/µs
Maximum Operating Frequency
1 kHz, 10 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Height
1.3mm
Length
3mm
Typical Voltage Gain
100 dB
Dimensions
3 x 1.75 x 1.3mm
Width
1.75mm
Typical Input Voltage Noise Density
12 nV/<sq/>Hz, 15 nV/<sq/>Hz
Rail to Rail
Rail to Rail Input/Output
Country of Origin
MY
