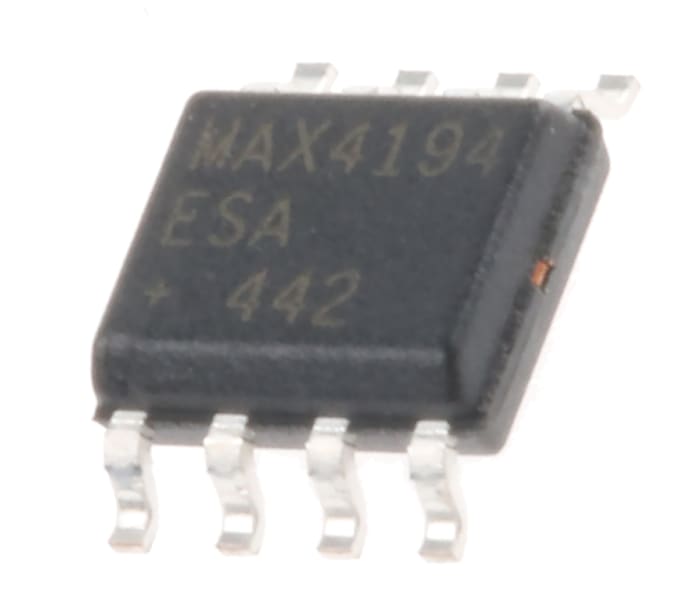

MAX4194ESA+ Maxim Integrated, Instrumentation Amplifier, 0.69mV Offset 250kHz, R-RO, 2.7 → 7.5 V, 8-Pin SOIC
Temporarily out of stock
$ 4.039
Each (In a Pack of 5)
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 4.039 |
| 25 - 45 | $ 3.486 |
| 50 - 70 | $ 3.381 |
| 75+ | $ 3.609 |
Live stock
Temporarily out of stock
Product details
Instrumentation Amplifiers, Maxim Integrated
The Instrumentation Amplifier ICs amplify the difference between two input signal voltages, while rejecting any signals that are common to both inputs. The DC precision and gain accuracy is maintained within a noisy environment, and also where large common-mode signals (AC power line frequency) are present.
Instrumentation Amplifiers, Maxim Integrated
Specifications
Brand
Maxim Integrated
Power Supply Type
Dual, Single
Package Type
SOIC
Mounting Type
Surface Mount
Typical Single Supply Voltage
2.7 → 7.5 V
Pin Count
8
Typical Dual Supply Voltage
±1.35 to ±3.75V
Rail to Rail
Rail to Rail Output
Maximum Input Offset Voltage
0.69mV
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Maximum Input Resistance
1GΩ
Minimum CMRR
60dB
Typical Gain Bandwidth Product
250kHz
Maximum Supply Current
0.00002 mA
Height
1.5mm
Width
4mm
Dimensions
5 x 4 x 1.5mm
Length
5mm
Country of Origin
TH
