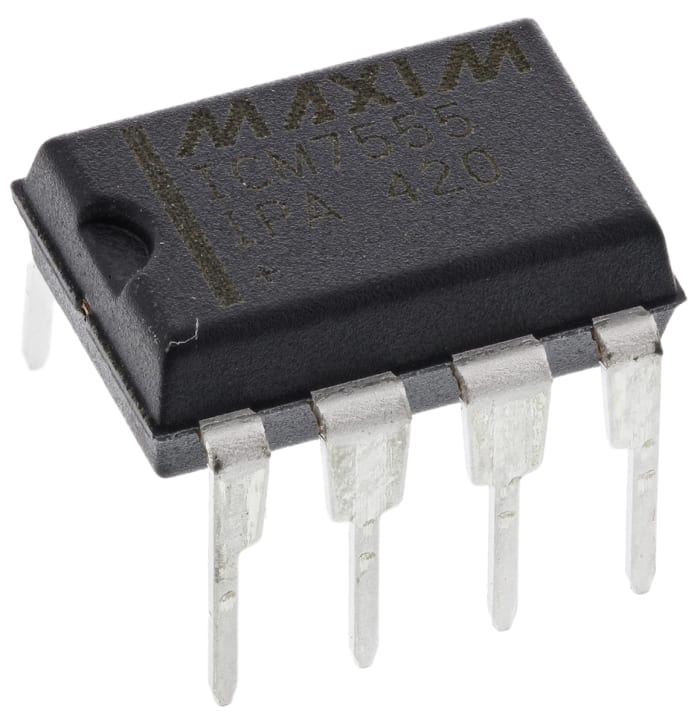

Maxim Integrated ICM7555IPA+, Timer Circuit, 8-Pin PDIP
Temporarily out of stock
$ 3.566
Each (In a Pack of 5)
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 3.566 |
| 25+ | $ 3.053 |
Production pack (Tube)
Live stock
Temporarily out of stock
Product details
555 Timer, Maxim Integrated
Maxim Integrated offers the 555 timer, a highly stable controller capable of producing accurate timing pulses. With monostable operation, you control the time delay by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
Timers/Timing Generators
Specifications
Brand
Maxim Integrated
Mounting Type
Through Hole
Timer Type
Standard
Package Type
PDIP
Number of Internal Timers
1
Pin Count
8
Minimum Operating Supply Voltage
2 V
Maximum Operating Supply Voltage
18 V
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Maximum Low Level Output Current
3.2mA
Maximum High Level Output Current
2mA
Height
3.302mm
Width
15mm
Dimensions
9.525 x 15 x 3.302mm
Length
9.53mm
Country of Origin
PH
