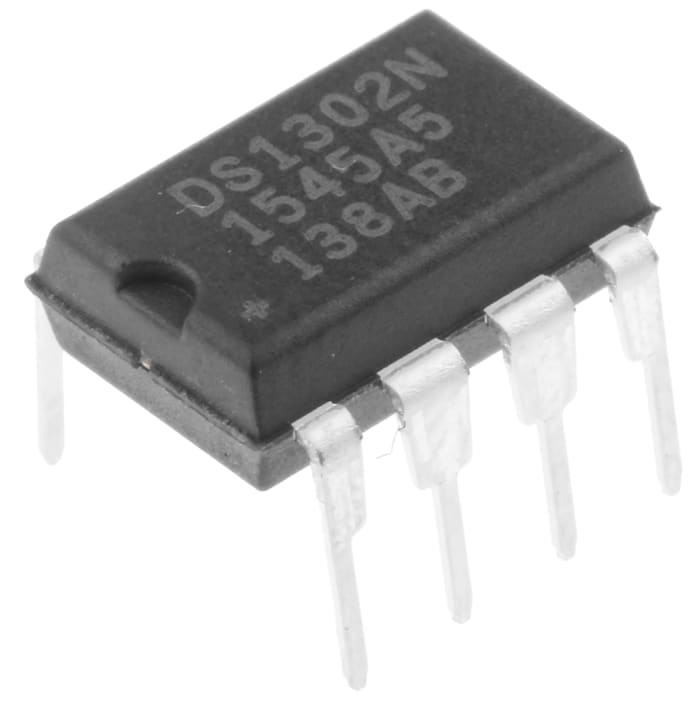

Maxim Integrated DS1302N+, Real Time Clock (RTC), 31B RAM Serial-3 Wire, 8-Pin PDIP
Temporarily out of stock
$ 4.095
Each (In a Pack of 2)
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 4.095 |
| 10 - 18 | $ 3.679 |
| 20+ | $ 3.632 |
Production pack (Tube)
Live stock
Temporarily out of stock
Product details
Real Time Clock with NV Memory, Integrated
A range of real-time clock products from Maxim incorporating non-volatile RAM memory for data retention. The clock/calendar functions provide seconds, minutes, hours, day, date, month, and year information. The clocks generally operate in either the 12 or 24-hour format with an AM/PM indicator. Additional features may include watchdog timers, alarms and trickle-charging facilities for external back-up batteries; some devices are available which include an integrated crystal for the clock oscillator.
Real-Time Clock (RTC)
Specifications
Brand
Maxim Integrated
Functions
Trickle Charger
Date Format
DM:M:DW:Y
Time Format
SS:MM:HH
User RAM
31B
Bus Type
Serial-3 Wire
Mounting Type
Through Hole
Package Type
PDIP
Pin Count
8
Dimensions
9.91 x 7.87 x 4.45mm
Length
9.91mm
Width
7.87mm
Height
4.45mm
Maximum Operating Supply Voltage
5.5 V
Minimum Operating Supply Voltage
2 V
Maximum Operating Temperature
+85 °C
Minimum Operating Temperature
-40 °C
Country of Origin
PH
