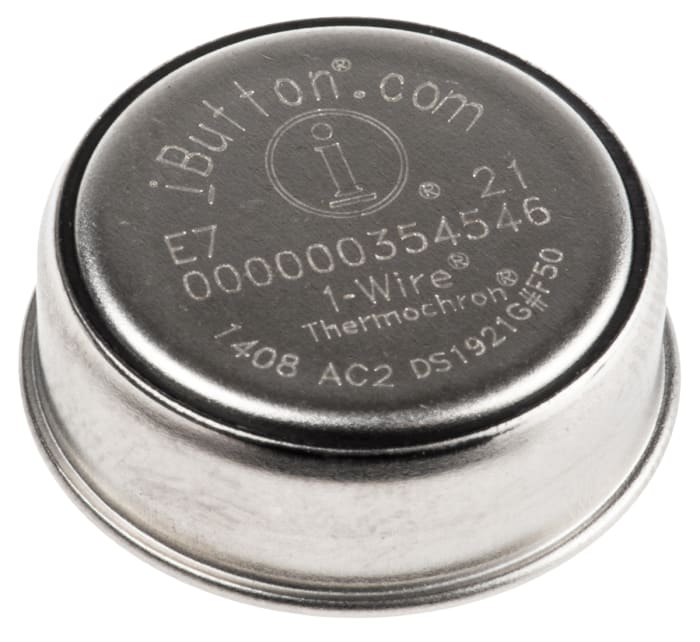

Maxim Integrated DS1921G-F5#, Temperature Sensor -40 to +85 °C ±1°C 1-Wire, 2-Pin F5 MicroCan
Temporarily out of stock
Back order for despatch on 05/05/2021
$ 30.49
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 30.49 |
| 10 - 24 | $ 29.58 |
| 25 - 49 | $ 28.36 |
| 50 - 99 | $ 27.14 |
| 100+ | $ 25.77 |
Live stock
Temporarily out of stock
Back order for despatch on 05/05/2021
Product details
iButton Temperature Loggers, Maxim Integrated
The Thermocron iButton® temperature and humidity logger has it's own unique 64-bit serial number for tracking and can measure temperature and humidity in any environment, protecting from any external irritants such as dust and moisture. The iButton® can also share communication via 1-Wire® with other sensors to a processor via a single port. The button shape of the DS1923-F5# logger enables easy mounting on any object whilst still allowing data to be accessed. Data recorded within the iButton® is contained within a password protected memory section and recorded as defined by the user.
Applications include food preparation and processing, warehouse monitoring, environmental monitoring and humidity/temperature sensitive goods transportation.
1-Wire iButton
Specifications
Brand
Maxim Integrated
Sensor Function
Temperature
Interface Type
1-Wire
Accuracy
±1°C
Pin Count
2
Minimum Operating Temperature
-40 °C
Operating Temperature Range
-40 to +85 °C
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2.8 V
Maximum Operating Supply Voltage
5.25 V
Package Type
F5 MicroCan
Length
6.45mm
Dimensions
17.35 (Dia.) x 6.45mm
Resolution
8 bit
Country of Origin
PH
