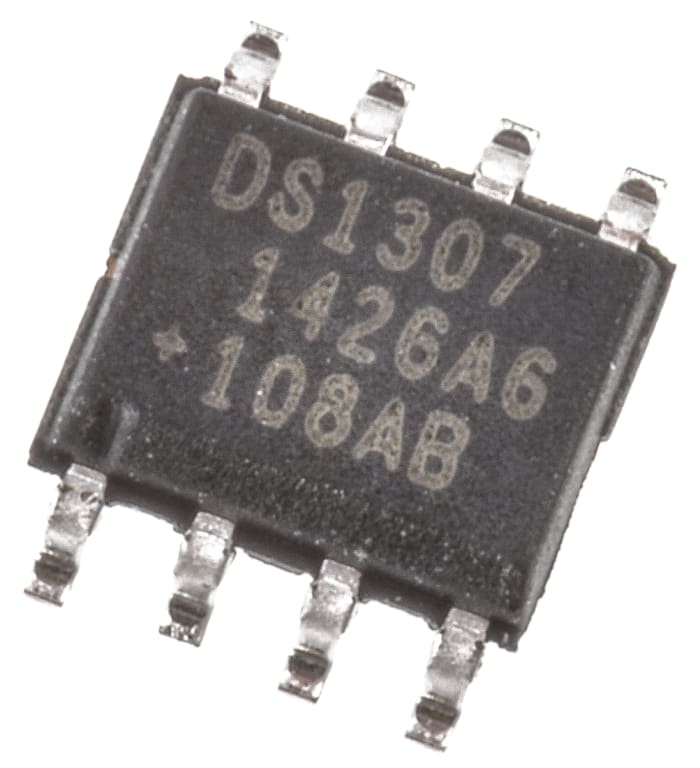

Maxim Integrated DS1307Z+, Real Time Clock (RTC), 56B RAM Serial-I2C, 8-Pin SOIC
Temporarily out of stock
$ 2.724
Each (In a Tube of 100)
Buy in bulk
| quantity | Unit price |
|---|---|
| 100 - 200 | $ 2.724 |
| 300 - 900 | $ 2.587 |
| 1000+ | $ 2.140 |
Live stock
Temporarily out of stock
Product details
Real Time Clock with NV Memory, Integrated
A range of real-time clock products from Maxim incorporating non-volatile RAM memory for data retention. The clock/calendar functions provide seconds, minutes, hours, day, date, month, and year information. The clocks generally operate in either the 12 or 24-hour format with an AM/PM indicator. Additional features may include watchdog timers, alarms and trickle-charging facilities for external back-up batteries; some devices are available which include an integrated crystal for the clock oscillator.
Real-Time Clock (RTC)
Specifications
Brand
Maxim Integrated
Functions
Alarm, Battery Backup, Calendar, Power Fail
Date Format
DW:DM:M:Y
Time Format
HH:MM:SS
User RAM
56B
Bus Type
Serial-I2C
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
8
Dimensions
5 x 4 x 1.5mm
Length
5mm
Width
4mm
Height
1.5mm
Maximum Operating Supply Voltage
5.5 V
Minimum Operating Temperature
0 °C
Minimum Operating Supply Voltage
4.5 V
Maximum Operating Temperature
+70 °C
