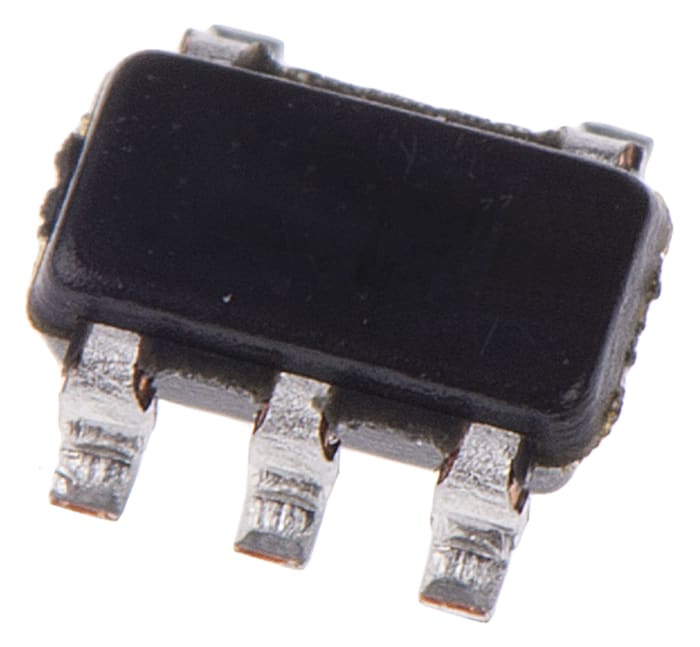

MAX4162EUK+T Maxim Integrated, Low Power, Op Amp, RRIO, 200kHz, 2.5 → 10 V, 5-Pin SOT-23
2500 in stock now
Available to deliver next day
$ 2.434
Each (On a Reel of 2500)
Live stock
2500 in stock now
Available to deliver next day
Product details
High-Voltage Operational Amplifiers, Maxim Integrated
High-voltage operational amplifiers are specified in applications where an input signal is greater than 10 V or ±5 V and an accurate output is required.
Operational Amplifiers, Maxim Integrated
Specifications
Brand
Maxim Integrated
Amplifier Type
Low Power
Mounting Type
Surface Mount
Package Type
SOT-23
Power Supply Type
Dual, Single
Number of Channels per Chip
1
Pin Count
5
Typical Single Supply Voltage
2.5 → 10 V
Typical Gain Bandwidth Product
200kHz
Typical Dual Supply Voltage
±1.25 to ±5V
Typical Slew Rate
115V/ms
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Height
1.3mm
Width
1.75mm
Typical Voltage Gain
120 dB
Dimensions
3 x 1.75 x 1.3mm
Typical Input Voltage Noise Density
80nV/√Hz
Rail to Rail
Rail to Rail Input/Output
Length
3mm
