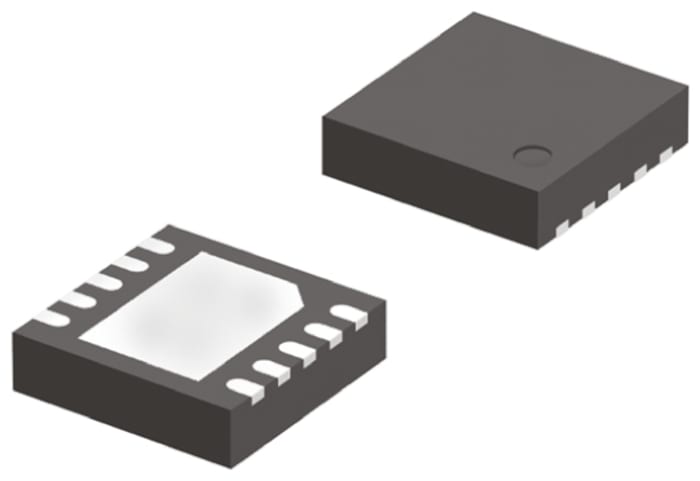

Maxim Integrated MAX8815AETB+T, 1-Channel, Step Up DC-DC Converter, Adjustable 10-Pin, TDFN
RS Stock No. 189-7017
Brand Maxim Integrated
Manufacturers Part No. MAX8815AETB+T
2500 in stock in the UK
2500 in stock in the UK
$ 1.474
Each (On a Reel of 2500)
Maxim Integrated MAX8815AETB+T, 1-Channel, Step Up DC-DC Converter, Adjustable 10-Pin, TDFN
Live stock
2500 in stock in the UK
Product details
Switching Regulators, Step-Up DC-DC Converters, Maxim Integrated
Switching Voltage Regulators, Maxim Integrated
Specifications
Brand
Maxim Integrated
Minimum Output Voltage
3.3 V
Maximum Output Voltage
5 V
Minimum Input Voltage
1.2 V
Maximum Input Voltage
5.5 V
Maximum Output Current
1A
Converter Type
Step Up
Number of Outputs
1
Output Type
Adjustable
Mounting Type
Surface Mount
Package Type
TDFN
Pin Count
10
Maximum Operating Temperature
+85 °C
Minimum Operating Temperature
-40 °C
Height
0.75mm
Width
3.1mm
Dimensions
3.1 x 3.1 x 0.75mm
Maximum Switching Frequency
2.2 MHz
Switching Regulator
Yes
Length
3.1mm
Line Regulation
-10 mV/V
Load Regulation
-7.5 mV/A
