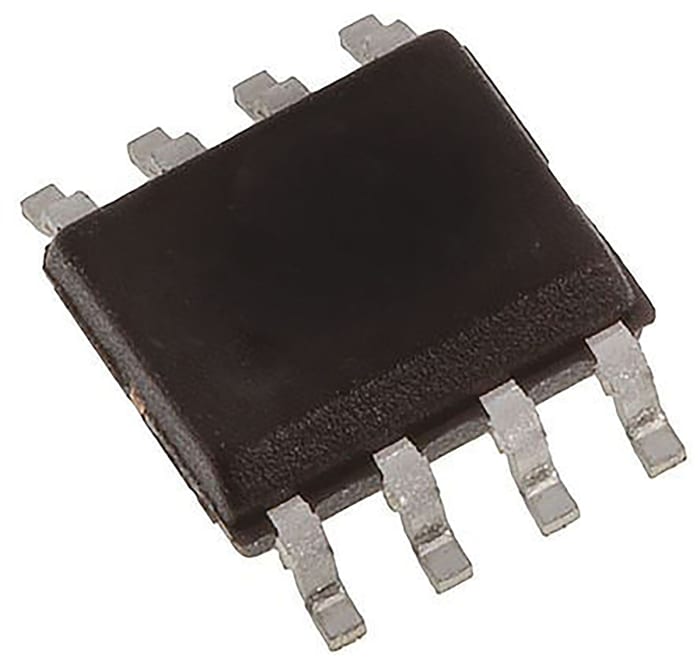

Maxim Integrated, MAX766ESA+ Switching Regulator, 1-Channel 105mA Adj./Fixed 8-Pin, SOIC
RS Stock No. 189-7002
Brand Maxim Integrated
Manufacturers Part No. MAX766ESA+
Temporarily out of stock
Back order for despatch on 04/06/2021
Temporarily out of stock
$ 4.764
Each (In a Tube of 100)
Maxim Integrated, MAX766ESA+ Switching Regulator, 1-Channel 105mA Adj./Fixed 8-Pin, SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 100 - 200 | $ 4.764 |
| 300 - 900 | $ 4.929 |
| 1000+ | $ 4.806 |
Live stock
Temporarily out of stock
Back order for despatch on 04/06/2021
Product details
Inverting Switching Regulators, Maxim Integrated
Switching Voltage Regulators, Maxim Integrated
Specifications
Brand
Maxim Integrated
Maximum Output Current
105mA
Maximum Output Voltage
-16 V
Regulator Function
Boost/Buck Controller, Inverting, Non-Inverting
Minimum Output Voltage
-1 V
Minimum Input Voltage
3 V
Maximum Input Voltage
16 V
Output Type
Adjustable, Fixed
Mounting Type
Surface Mount
Number of Outputs
1
Pin Count
8
Package Type
SOIC
Switching Regulator
Yes
Line Regulation
0.12 %/mV
Load Regulation
0.008 %/mA
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-40 °C
Dimensions
5 x 4 x 1.5mm
Maximum Switching Frequency
300 kHz
Maximum Operating Temperature
+85 °C
Length
5mm
