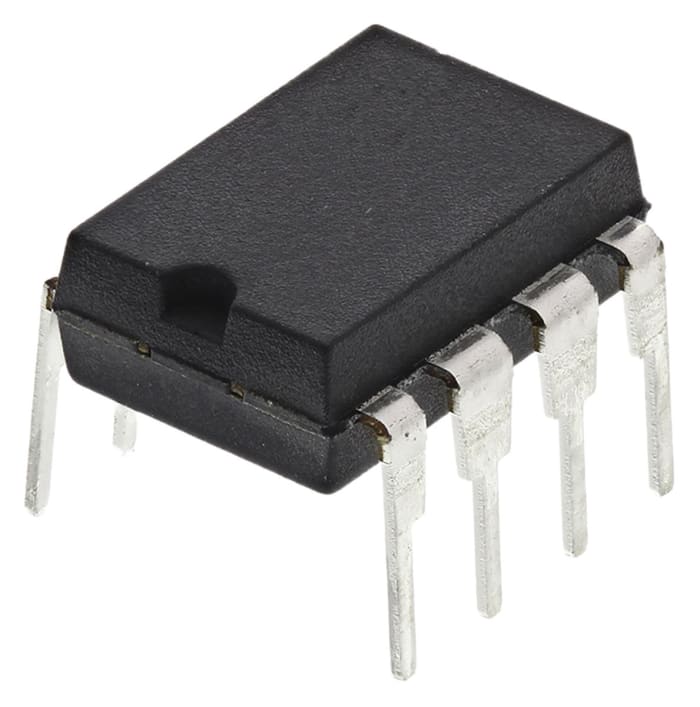

Maxim Integrated MAX637ACPA+, 1-Channel, Inverting DC-DC Switching Regulator, Adjustable/Fixed 8-Pin, PDIP
RS Stock No. 189-6974
Brand Maxim Integrated
Manufacturers Part No. MAX637ACPA+
Temporarily out of stock
Temporarily out of stock
$ 3.678
Each (In a Tube of 50)
Maxim Integrated MAX637ACPA+, 1-Channel, Inverting DC-DC Switching Regulator, Adjustable/Fixed 8-Pin, PDIP
Buy in bulk
| quantity | Unit price |
|---|---|
| 50 - 200 | $ 3.678 |
| 250 - 450 | $ 3.883 |
| 500 - 950 | $ 3.784 |
| 1000+ | $ 3.688 |
Live stock
Temporarily out of stock
Product details
Inverting Switching Regulators, Maxim Integrated
Switching Voltage Regulators, Maxim Integrated
Specifications
Brand
Maxim Integrated
Minimum Output Voltage
-15.75 V
Maximum Output Voltage
-15 V, -14.25 V
Minimum Input Voltage
2.3 V
Maximum Input Voltage
16.5 V
Maximum Output Current
525mA
Converter Type
Inverting
Number of Outputs
1
Output Type
Adjustable, Fixed
Mounting Type
Through Hole
Package Type
PDIP
Pin Count
8
Maximum Operating Temperature
+70 °C
Minimum Operating Temperature
0 °C
Width
7.87mm
Dimensions
9.91 x 7.87 x 4.45mm
Maximum Switching Frequency
65 kHz
Switching Regulator
Yes
Length
9.91mm
Line Regulation
0.5 %/V
Load Regulation
0.2 %/V
Height
4.45mm
Country of Origin
PH
