TRACOPOWER TME 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out 12V dc
395 in stock in the UK
$ 5.34
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 5.34 |
| 5 - 9 | $ 5.18 |
| 10 - 24 | $ 5.02 |
| 25 - 49 | $ 4.81 |
| 50+ | $ 4.59 |
Live stock
395 in stock in the UK
Product details

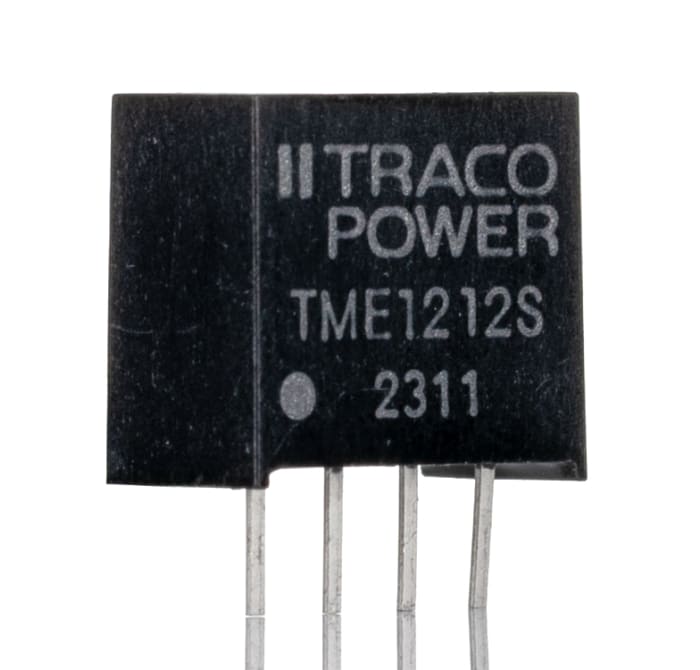

Tracopower (TME Series) 1W SIP Single Output Unregulated Isolated DC-DC Converter
The Traco Power TME series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The full SMD design of these isolated converters makes it possible to offer a product with high performance at a low cost. The TME DC-DC converters require only 0.7 cm2 board space and are the perfect solution for space-critical industrial applications for board level power distribution.
Traco - SIP 1W to 9W
Specifications
Brand
TRACOPOWER
Output Voltage
12V dc
Input Voltage Range
10.8 → 13.2 V dc
Input Voltage Nominal
12 V dc
Isolation Voltage
1kV dc
Power Rating
1W
Output Current
80mA
Mounting Type
Through Hole
Number of Outputs
1
Efficiency
79%
Package
SIP 4
Minimum Temperature
-40°C
Load Regulation
±10%
Maximum Temperature
+85°C
Depth
10.2mm
Width
6.1mm
Series
TME
Length
11.5mm
Country of Origin
TW
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
TME 1212S Datasheet
TME 1212S Datasheet
