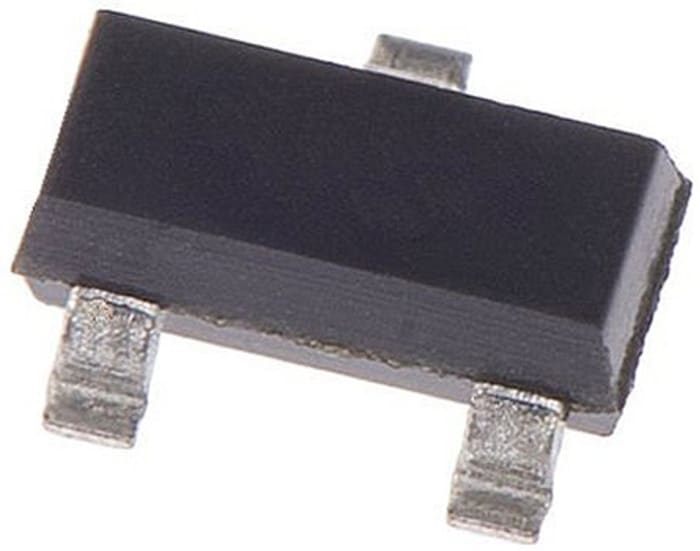

Maxim Integrated Fixed Shunt Voltage Reference 1.25V ±0.2 % 3-Pin SOT-23, MAX6006AEUR+T
2500 in stock in the UK
$ 1.329
Each (On a Reel of 2500)
Live stock
2500 in stock in the UK
Product details
Voltage Reference, 1.2V to 2.048V, Maxim Integrated
Voltage References, Maxim Integrated
Specifications
Brand
Maxim Integrated
Nominal Voltage
1.25V
Package Type
SOT-23
Reference Type
Fixed
Initial Accuracy
±0.2 %
Mounting Type
Surface Mount
Topology
Shunt
Maximum Output Current
550µA
Maximum Input Voltage
12.6 V
Maximum Output Voltage
1.25 V
Pin Count
3
Dimensions
3.04 x 1.4 x 1.02mm
Height
1.02mm
Width
1.04mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Length
3.04mm
Country of Origin
PH
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
MAX3372E–MAX3379E/MAX3390E–MAX3393E ±15kV ESD-Protected, 1μA, 16Mbps, Dual/Quad Low-Voltage Level Translators in UCSP Data Sheet
MAX6006–MAX6009, 1uA SOT-23 Precision Shunt Voltage Reference
Precision Shunt Voltage Reference Datasheet
MAX3372E–MAX3379E/MAX3390E–MAX3393E ±15kV ESD-Protected, 1μA, 16Mbps, Dual/Quad Low-Voltage Level Translators in UCSP Data Sheet
