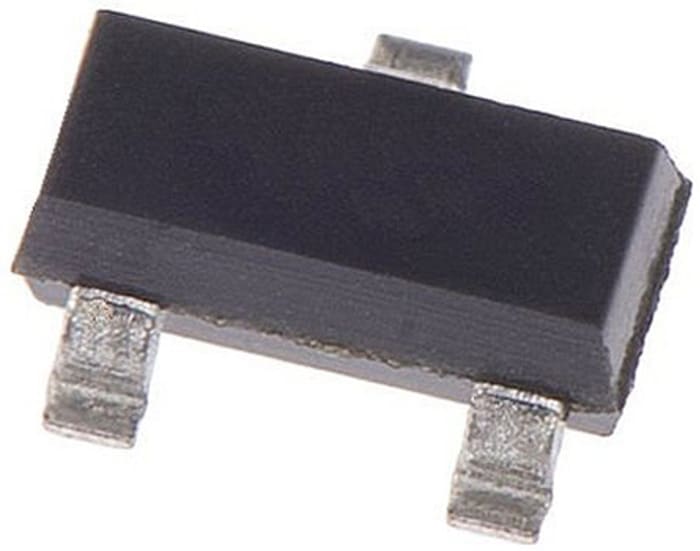

Maxim Integrated Fixed Series Voltage Reference 2.5V ±1.0 % 3-Pin SOT-23, MAX6002EUR+T
2500 in stock in the UK
$ 0.729
Each (On a Reel of 2500)
Live stock
2500 in stock in the UK
Product details
Voltage Reference, 2.5V, Maxim Integrated
Voltage References, Maxim Integrated
Specifications
Brand
Maxim Integrated
Nominal Voltage
2.5V
Package Type
SOT-23
Reference Type
Fixed
Initial Accuracy
±1.0 %
Mounting Type
Surface Mount
Topology
Series
Maximum Output Current
400µA
Maximum Input Voltage
12.6 V
Minimum Output Voltage
2.48 V
Maximum Output Voltage
2.53 V
Pin Count
3
Line Regulation
200 μV/V
Load Regulation
1.1 μV/μA
Dimensions
3.048 x 1.397 x 1.067mm
Maximum Operating Temperature
+85 °C
Length
3.05mm
Height
1.067mm
Width
1.397mm
Minimum Operating Temperature
-40 °C
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
MAX202E–MAX213E, MAX232E/MAX241E ±15kV ESD-Protected, +5V RS-232 Transceivers Data Sheet
MAX6001–MAX6005 Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References Data Sheet
MAX6001–MAX6005 Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References Data Sheet
