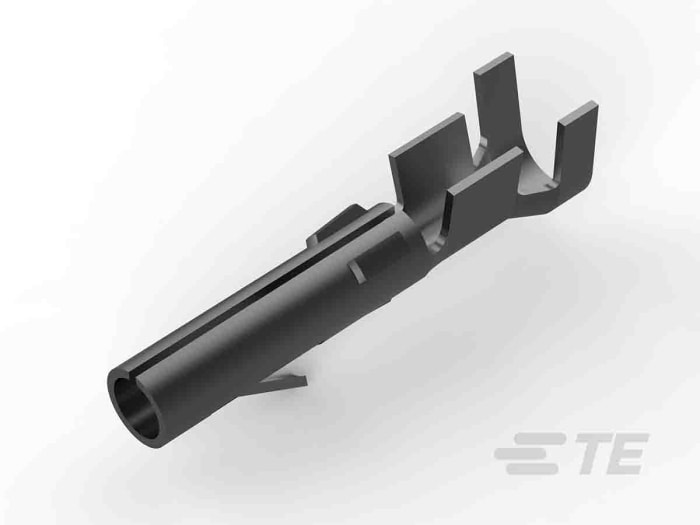

TE Connectivity, Commercial MATE-N-LOK Female PCB Connector Contact 14AWG 61117-4
Temporarily out of stock
$ 0.073
Each (On a Reel of 5000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 5000 - 5000 | $ 0.073 |
| 10000 - 10000 | $ 0.070 |
| 15000 - 15000 | $ 0.067 |
| 20000 - 20000 | $ 0.064 |
| 25000+ | $ 0.063 |
Live stock
Temporarily out of stock
Product details
TE Connectivity Commercial MATE-N-LOK Connector Pin and Socket Contacts
A range of pin and socket crimp contacts for use in Commercial MATE-N-LOK 2.54mm connector housings. These pin and socket contacts feature a locking lance for secure retention and are available with pre-tin or gold plating and a variety of wire size ranges.
TE Connectivity Commercial MATE-N-LOK Range
Specifications
Brand
TE Connectivity
Gender
Female
For Use With
Commercial MATE-N-LOK Housings
Series
Commercial MATE-N-LOK
Minimum Wire Size mm²
0.52mm²
Termination Method
Crimp
Maximum Wire Size mm²
2.08mm²
Minimum Wire Size AWG
20AWG
Contact Plating
Tin
Maximum Wire Size AWG
14AWG
Contact Material
Phosphor Bronze
Series Number
61117
Maximum Contact Resistance
3.25mΩ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
Technical Document
Statement of Conformity
