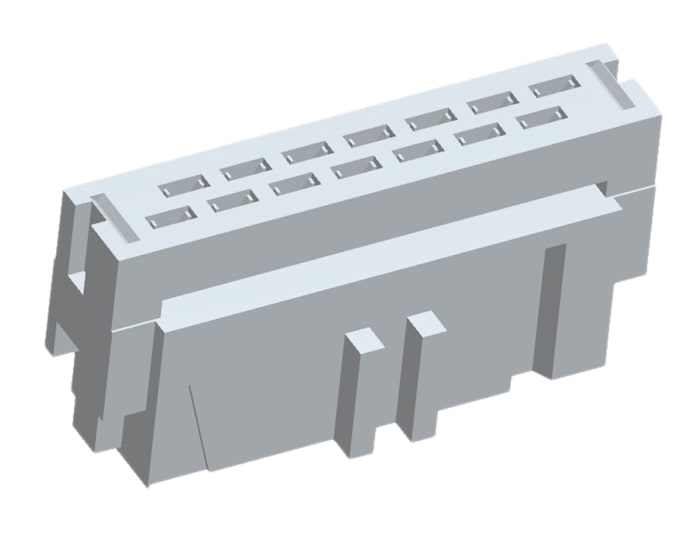

TE Connectivity 14-Way IDC Connector Socket, 2-Row
RS Stock No. 189-5879
Brand TE Connectivity
Manufacturers Part No. 1-215915-4
3000 in stock in the UK
3000 in stock in the UK
$ 0.600
Each (In a Box of 1500)
TE Connectivity 14-Way IDC Connector Socket, 2-Row
Buy in bulk
| quantity | Unit price |
|---|---|
| 1500 - 1500 | $ 0.600 |
| 3000+ | $ 0.557 |
Live stock
3000 in stock in the UK
Product details
TE Connectivity AMP-Latch Mil Spec IDC Ribbon Cable Socket Connectors
A range of TE Connectivity connectors for 1.27 mm (0.05 inch) pitch ribbon cable.
These female socket connector contacts mate with 0.64 mm (0.025 inch) square or round posts with 6.22 mm (0.245 inch) max. and 4.45 mm (0.175 inch) min. lengths which could have been previously soldered into the PCB.
TE Connectivity AMP-Latch IDC Ribbon Cable Connectors
Specifications
Brand
TE Connectivity
Number Of Contacts
14
Number Of Rows
2
Gender
Female
Pitch
2.54mm
Termination Method
IDC
Current Rating
1A
Contact Plating
Gold
Series
AMP-LATCH
Minimum Operating Temperature
-65.0°C
Maximum Operating Temperature
105.0°C
Voltage Rating
500.0 V ac
Contact Material
Phosphor Bronze
