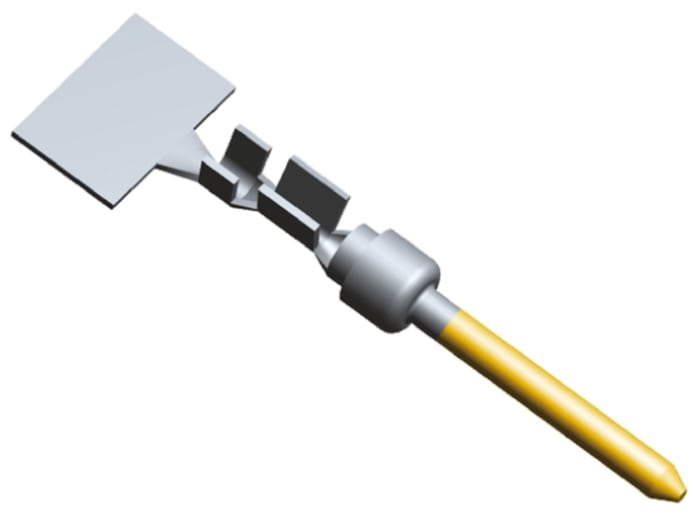

TE Connectivity size 20 Male Crimp D-sub Connector Contact, Gold, Nickel, Tin Pin, 0.2 → 0.6 mm², 24 → 20
RS Stock No. 189-5864
Brand TE Connectivity
Manufacturers Part No. 1658539-1
20000 in stock in the UK
20000 in stock in the UK
$ 0.056
Each (On a Reel of 10000)
TE Connectivity size 20 Male Crimp D-sub Connector Contact, Gold, Nickel, Tin Pin, 0.2 → 0.6 mm², 24 → 20
Live stock
20000 in stock in the UK
Product details
TE Connectivity HDP-20 Crimp Contacts
The TE Connectivity HDP-20 series of connector contacts are designed for the AMPLIMITE D-Sub connector system. This range of size 20 DF contacts is available in both pin and socket options.
• Contact size: 20DF
• Pin diameter: 0.04 (1.02)
• Gold plated for quality
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Brand
TE Connectivity
Gender
Male
Contact Material
Brass
Contact Plating
Gold, Nickel, Tin
Maximum Contact Resistance
15mΩ
Minimum Wire Size mm²
0.2mm²
Wire Size
0.2 → 0.6 mm², 24 → 20 AWG
Contact Type
Pin
Maximum Wire Size mm²
0.6mm²
Minimum Wire Size AWG
24AWG
Maximum Wire Size AWG
20AWG
Contact Size
20
Current Rating
2A
Termination Method
Crimp
Series Number
1658539
